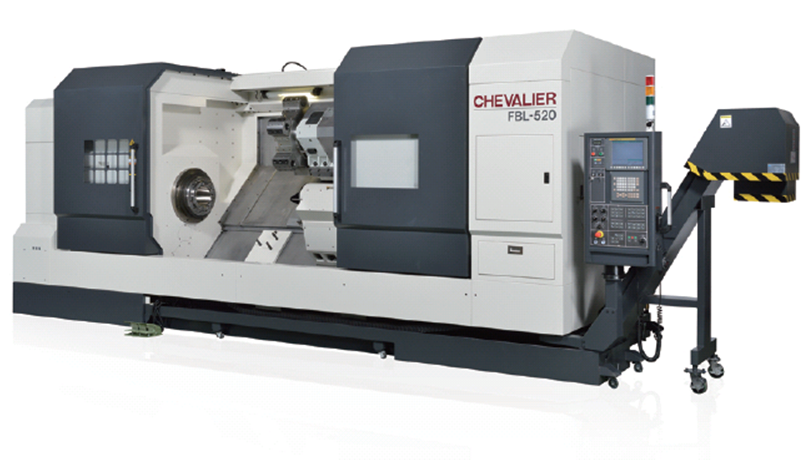

CHEVALIER 520D

Capacity
Swing Over Bed: .................................   40.50”
Swing Over Cross Slide .......................   31.49”
Maximum Turning Diameter: ...............    37”
Maximum Turning Length....................... 78”
Distance between Centers...................... 78”
Headstock
Spindle Nose.....................................   A2-20
Through Spindle Hole Diameter.......... 15” (D)
Spindle Speeds.................... 500 rpm
Spindle Motor....................... 60 HP
Transmission............ D model: 2-speed Gear
Maximum torque.......C model: 9,000 NM@60 rpm
Turret
Turret Tools..........      12 Station
Transmission............. Bi-directional servo indexing
Index Time................ 0.35 sec
Clamping way............Hydraulic clamp with curvic coupling
Clamping pressure.....15,188 kgf
OD Shank.................. 1.25”
Diameter of Boring Bar.2.5".STD / 3.0” opt
Travel
X Axis........................ 19.29”
Z Axis........................ 78”
Feed motor X Z Axis.......... 9kw
X Z Axis Rapid Feed rate....394/472ipm
Tailstock
Control............ Programmable position / quill
Travel (w/o Steady Rest).......... 78”
Quill Travel.............................. 3.94”
Quill Diameter......................... 7.87
Quill Taper.............................. MT6
Rotary Quill
General Information
Slide way Slant............. 45˚
Coolant Pump................ 1.6HP/ 90 PSI
Machine Dimensions w/ conveyor (LxWxH)..................... 300“ x 117“ x 99.6“
Machine Weight........... 47,500 lbs

Investment Cost
Model: FBL-520D
Price: $496,000.00 IN Stock Houston,TX
