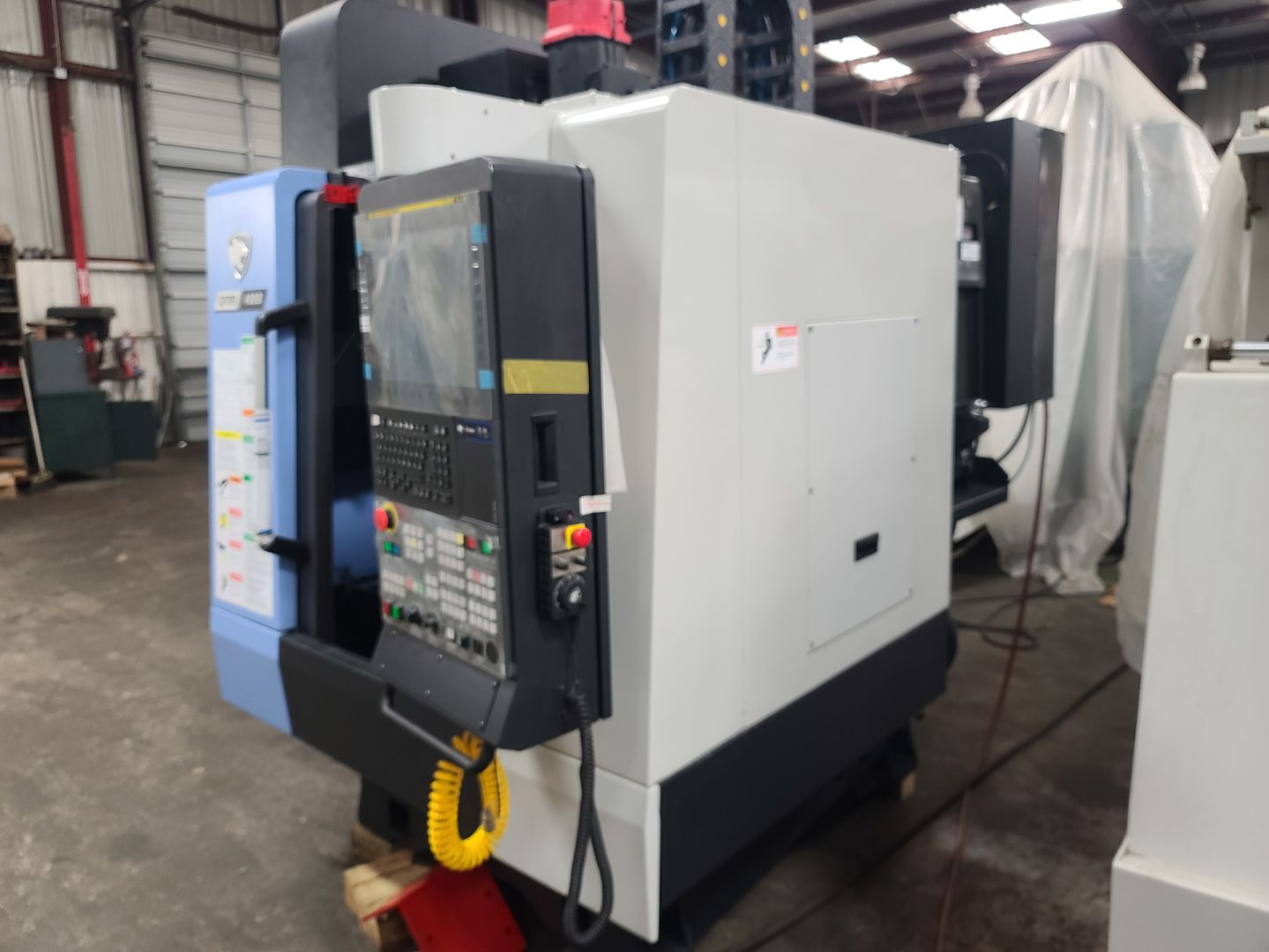

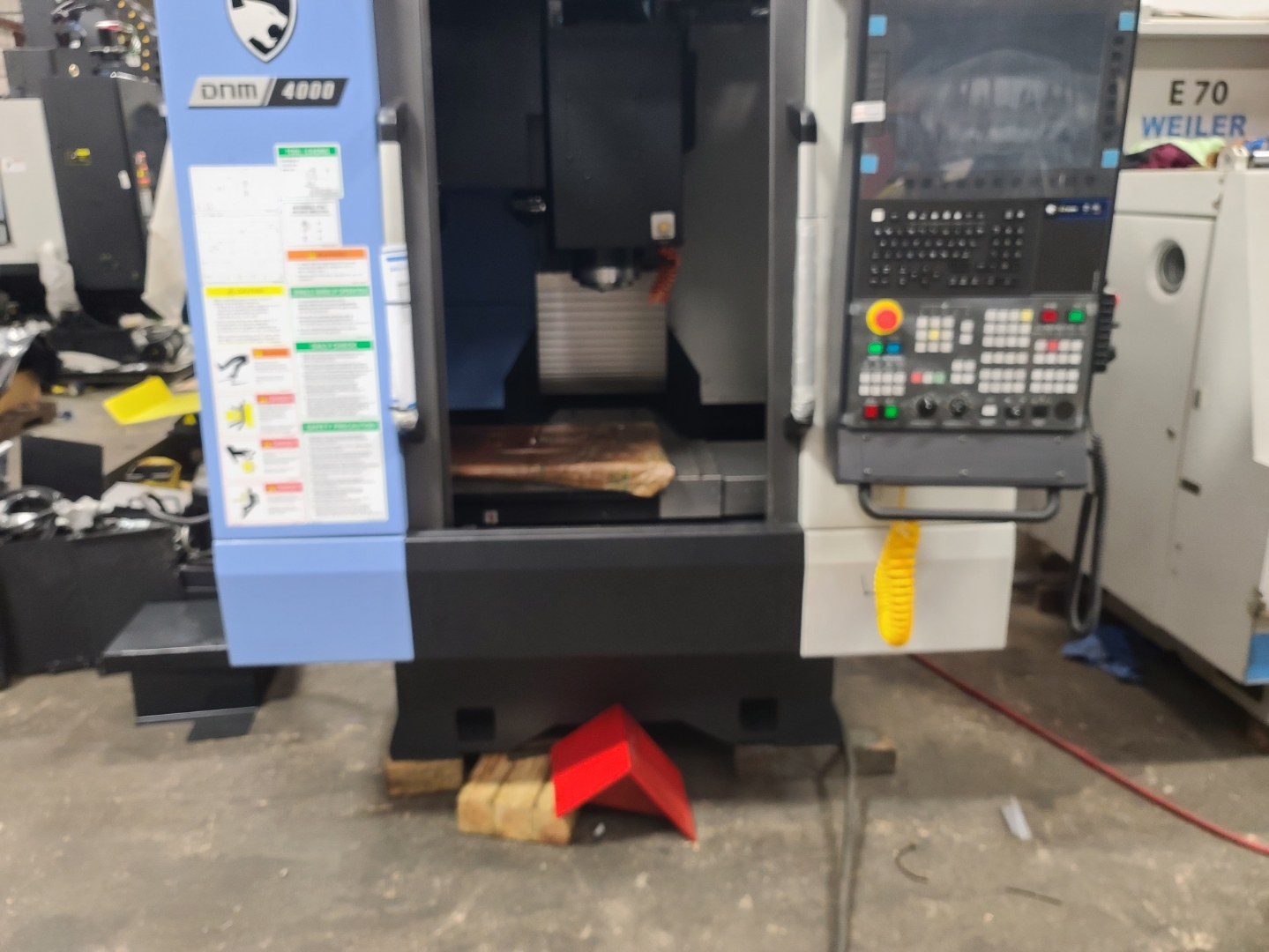

DN Solutions DNM 4000 Vertical Machining Center

Specifications:

Model DNM 4000

Serial number MV0117-000482

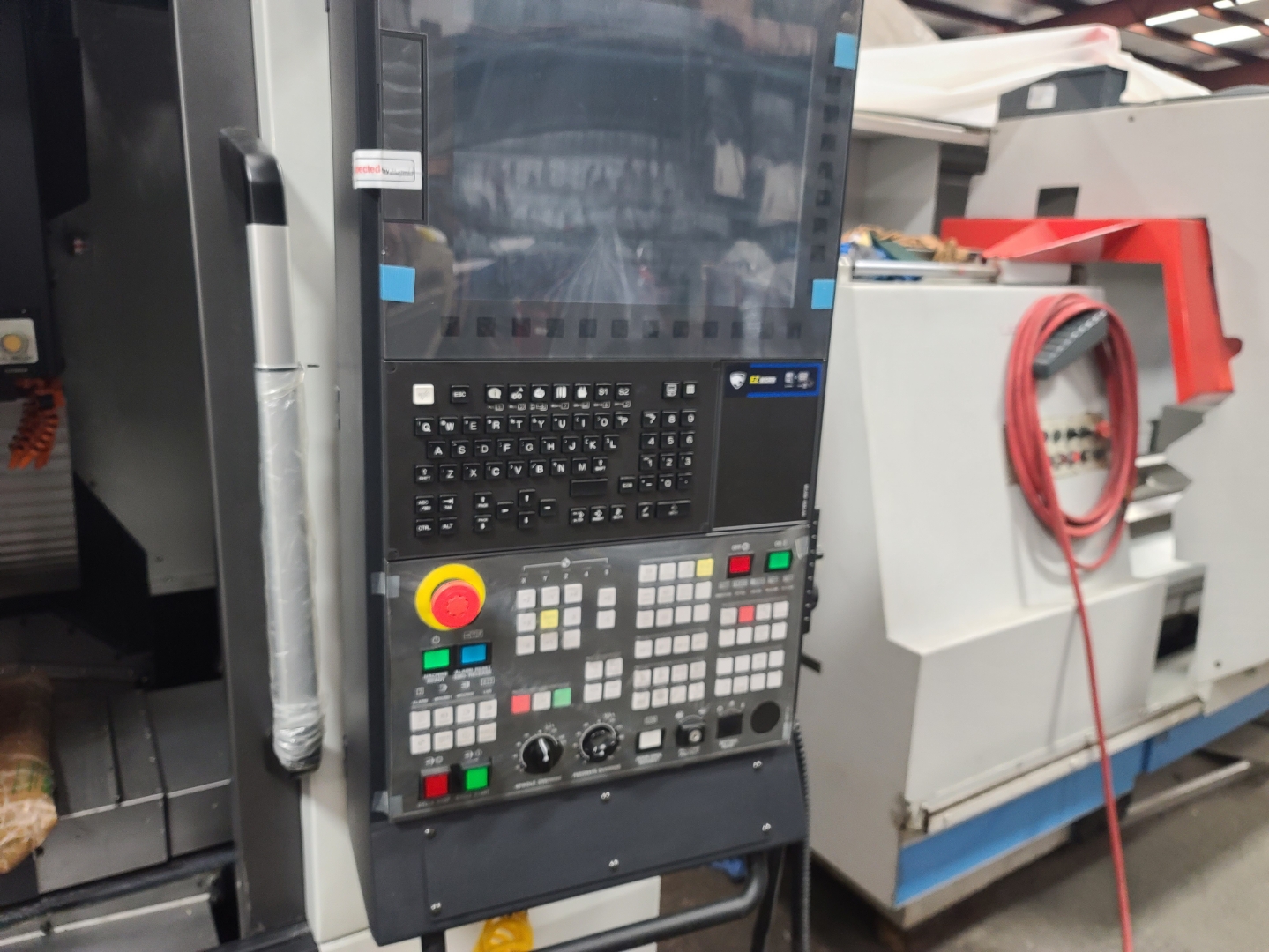

CNC control Fanuc Oi-Plus

Travels; X-Y-Z 20.47 x 15.75 x 18.90”

Max table load 882 lbs.

Spindle taper CAT 40

Max spindle speed 12,000 rpm.

AC spindle motor 15/25 hp.

Tool stations 20 stations

Table loading area 25.59” x 15.75”

Rapids: X-Y-Z 1,889-1,889-1,889 ipm.

Max feed thrust; X-Y-Z 992-992-1,342 lbs.

Repeatability; X-Y-Z .002-.002-.002”

Rigid tapping Yes

Thru spindle coolant Yes, 215 psi.

Thru spindle air Yes

Oil jacket spindle chiller Yes

Portable pulse generator Yes

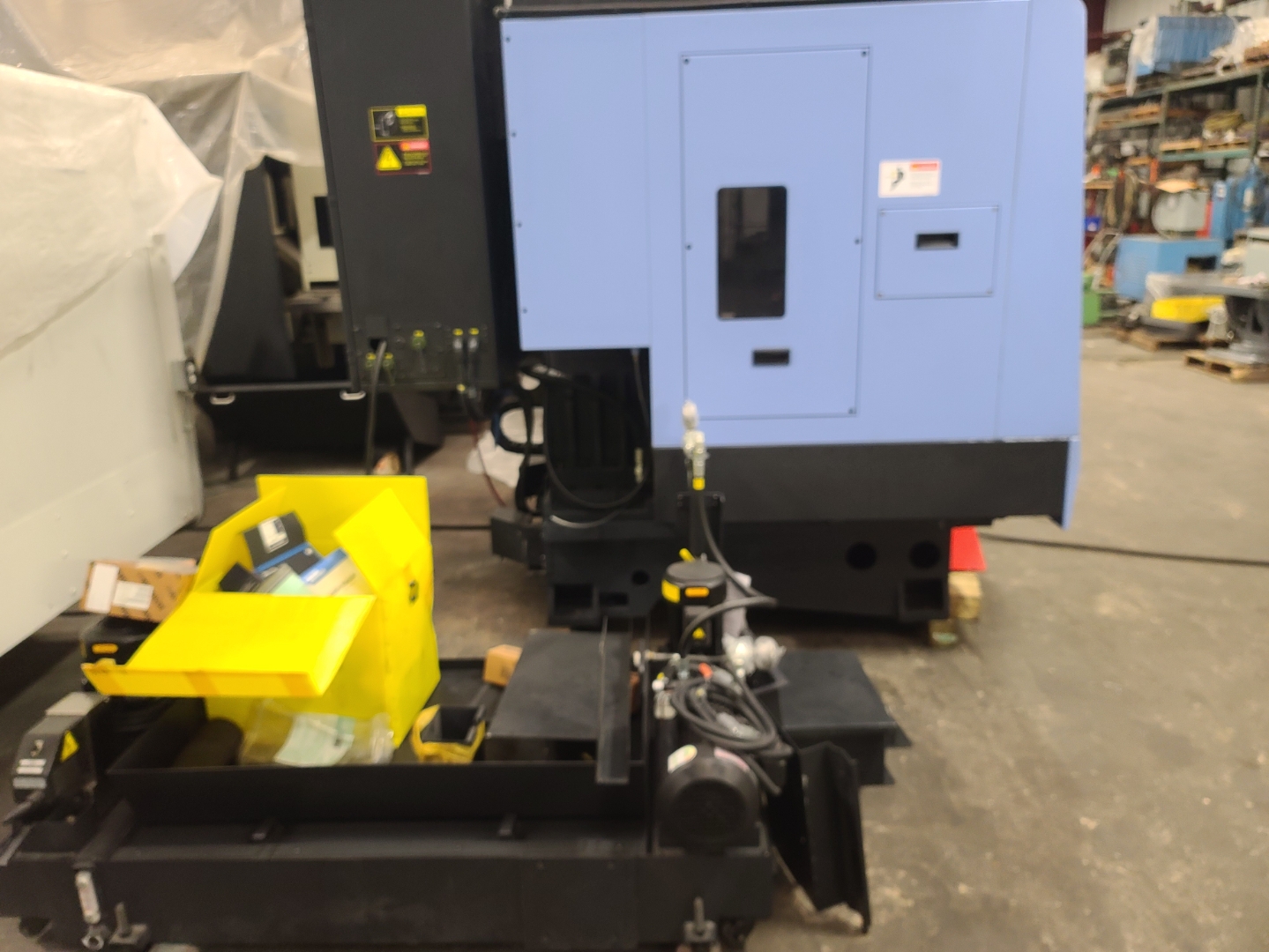

Flood coolant system Yes, for chip disposal

Coolant tank 52 gallons

Voltage 220/3/60

Dimensions; L-W-H 113-65-108”

Weight 7,275 lbs.

Price: $ 79,500 FOB Houston, TX.

Condition: New, never used.

Warranty: Fanuc warranty on the CNC control as long as voltage is in the 205-235 range.

Availability: Stock, Subject to Prior Sale

Note: We are not a DN Solutions (Daewoo) dealer. We purchased this machine from an

insurance company as it had tipped over in it’s container when being unloaded in San

Diego, CA from Korea sustaining sheet metal damage which we have repaired.
