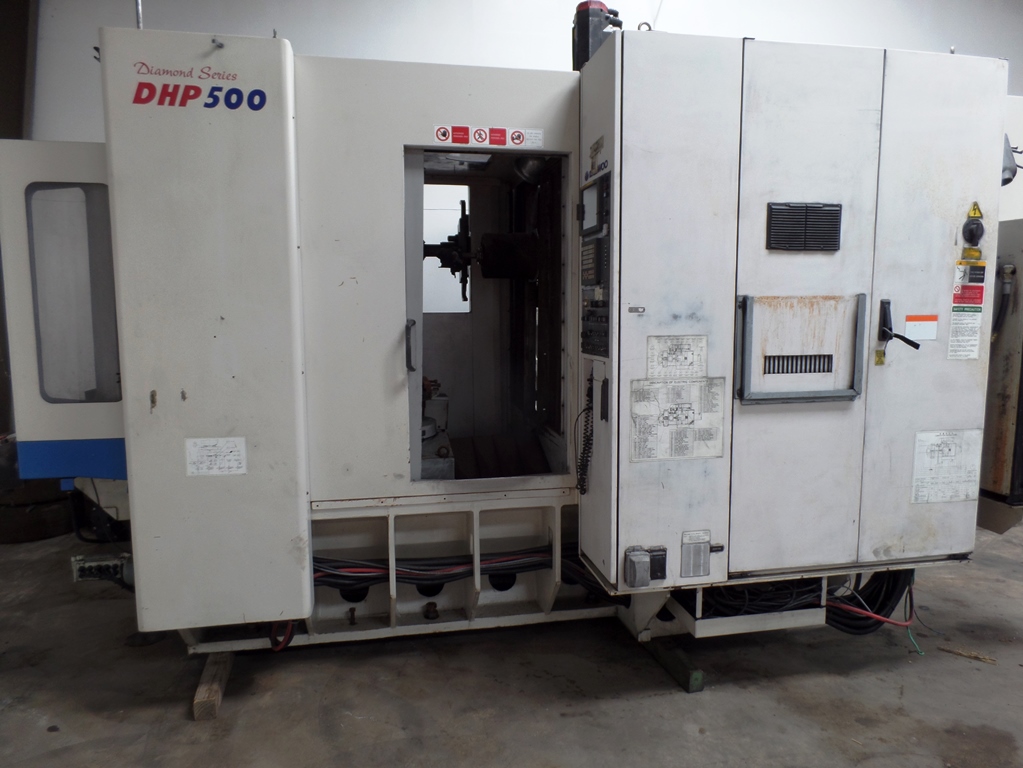

DOOSAN DHP-500 (Diamond Series) HORIZONTAL MACHINING CENTER

Specifications:

Model DHP-500

Serial number HP500036

Year of manufacture 2001

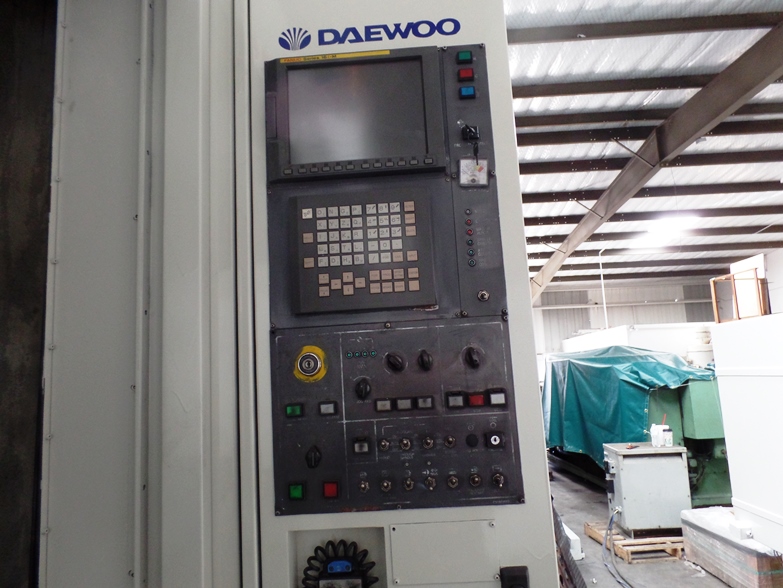

CNC control Fanuc 16iM,

Main motor/15 min. 40/33 hp.

Spindle speed 600-12,000 rpm

Tool shank Cat 50

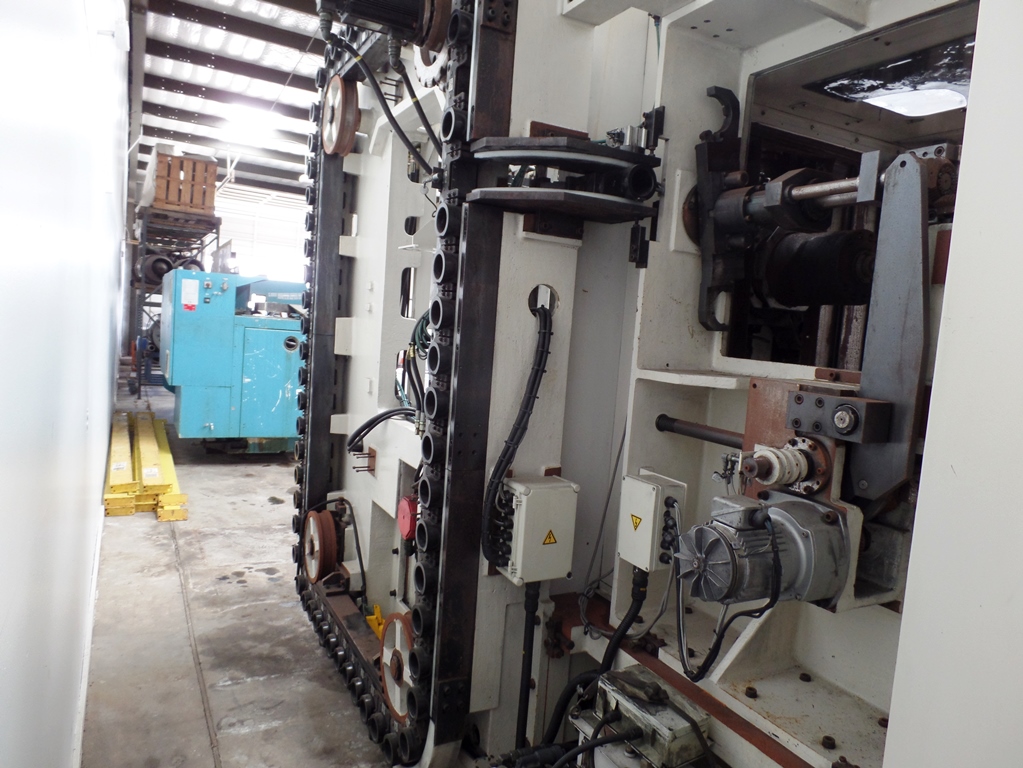

Tool stations 60 stations

Pallet size 19.68” x 19.68” American standard

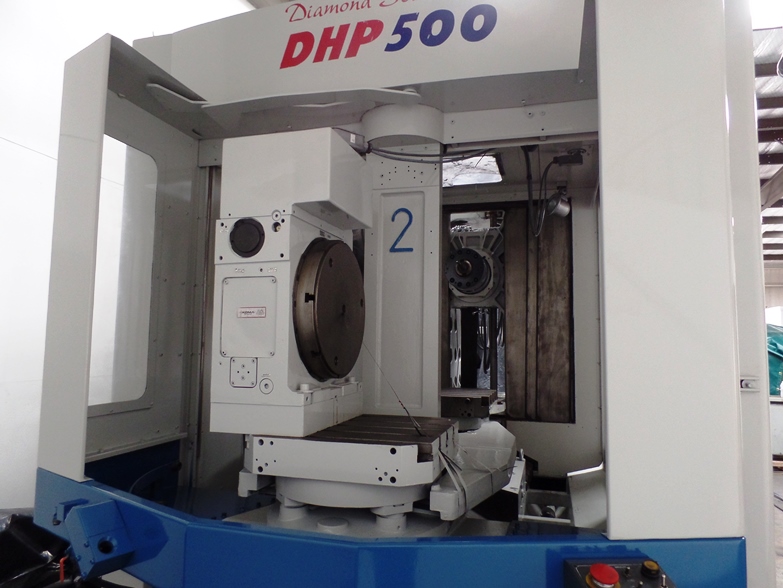

Number of pallets Two

X-axis 31.49”/800mm

Y-axis 27.56”/700mm

Z-axis 29.52”/750mm

Rapid traverse X-Y-Z 1,575ipm

Max feed thrust force 2,701/lb.f

Cutting feed rate 0.04-787.40/ipm

Positioning accuracy 0.0002”/full stroke

Repeatability 0.00008”

Spindle nose to table center 5.91”-35.43”

Spindle center to pallet top 2.95”-30.51”

Coolant Flood type, 120 psi

Spindle oil chiller Yes

Manuals Yes, Gen, Ops, Parts, Electrical

Dimensions 198” W x 128” L x 120” H

Weight 41,000 lbs.

Price: $49,500

Houston, TX. Subject to Prior Sale.
