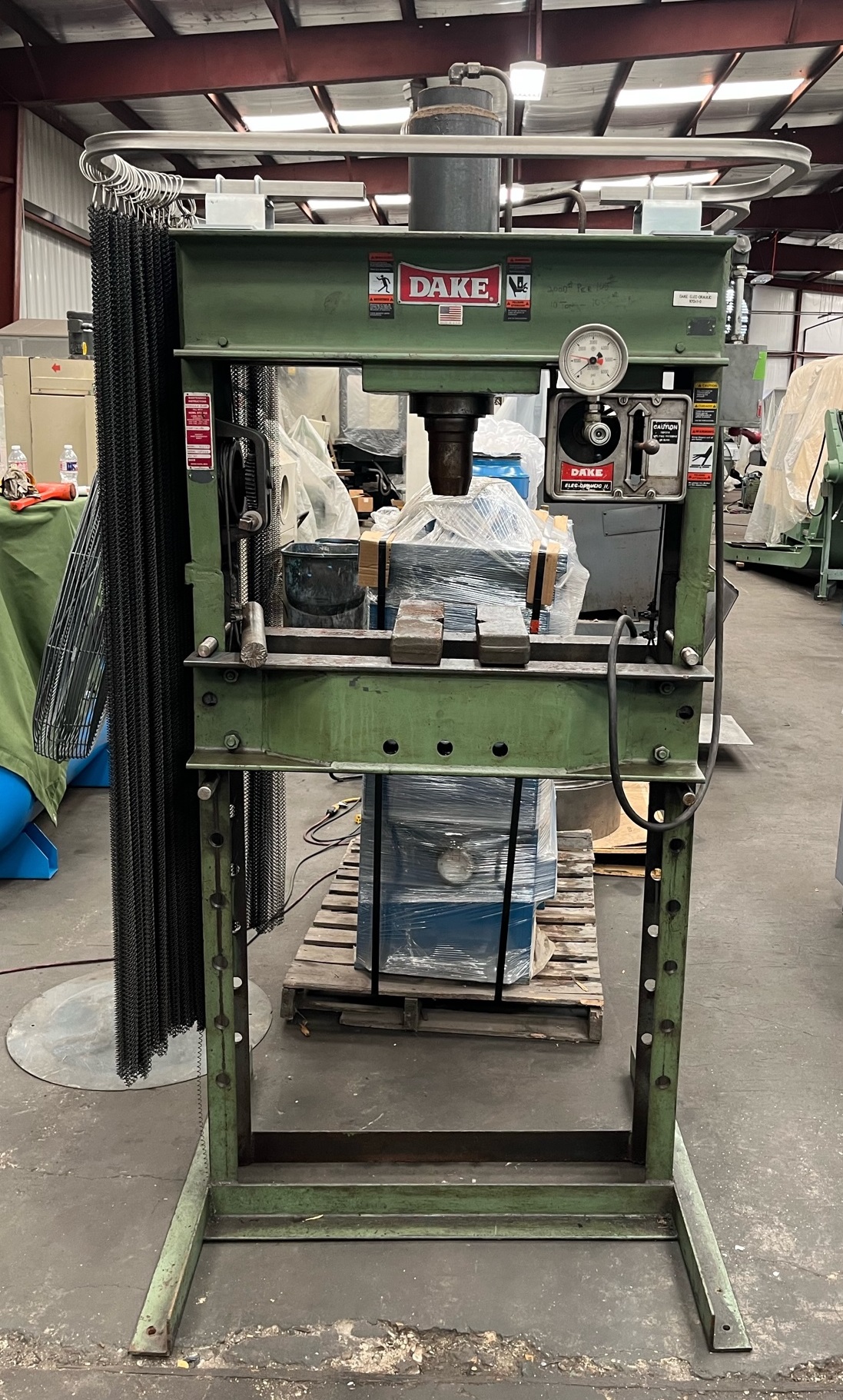

Dake Elec-Draulic 50 Ton H Frame Press
For super-sensitive, double-acting ram control and simple
operation..
Features
-
Electric
operation provides smooth, consistent pressing action.
-
Variable
ram speed allows fingertip control of ram movement for precise
pressure control.
-
H-frame
mounted control allows convenient control of press when workhead
is out of operator's reach.
-
Adjustable
table permits easy vertical movement by means of self-locking
hoist.
-
Double-acting cylinder permits pulling as well as pressing ram
action.
-
Safety
valve protects against overloads.
-
T-ring
seals prevent pressure loss.
-
Optional
bolt flange for tooling attachment may be substituted for flat
ram nose.
Standard Equipment
-
Frame
-
Flat ram
nose
-
Pump
-
Safety
Relief Valve
-
Double-acting workhead
-
Pressure
gauge
Models / Specifications
|
Model |
8-050 |
|
Number |
908050 |
|
Capacity (tons) |
50 |
|
Horsepower |
2 |
|
RPM |
1800 |
|
Ram speed-press (ipm) |
8" |
|
Ram speed-return (ipm) |
22" |
|
Width between uprights |
323/4" |
|
Width between table channels |
71/4" |
|
Minimum ram to table |
101/8" |
|
Maximum ram to table |
451/8" |
|
Ram travel |
10" |
Price:
$6,750.
