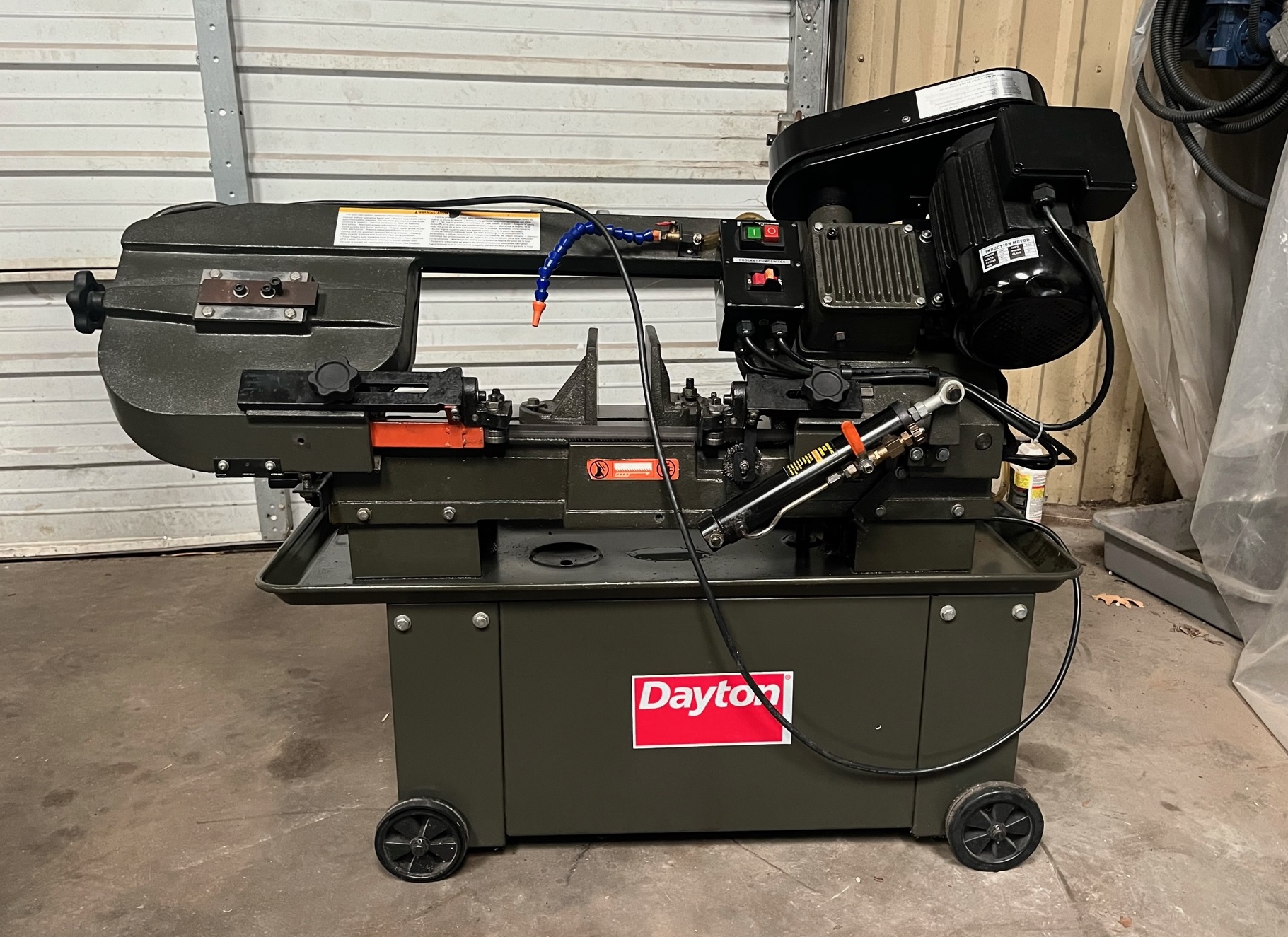

Dayton 7” x 12” Horizontal Bandsaw
Specifications:
Model 21C004
Blade
Thickness 0.035"
Blade
Wheels Dia. 11-1/4"
Cutting Angle 45 Degrees
Cutting Capacity Rectangle 7" x 11-3/4"
Cutting Capacity Round 7"
Cutting Capacity Square 7"
Max.
Blade Length 93"
Max.
Blade Width 3/4"
Max.
Thickness of Cut 7"
Min.
Blade Length 93"
Min.
Blade Width 3/4"
Miter
Capacity 45 Degrees
Overall Depth 49.5"
Overall Height 39"
Overall Width 21.5"
Blade
Speeds 135/160/225/395
Motor 1HP,
1725 rpm, 12 Amps
Voltage 110/1 phase/60 cycle
Price: $1,500.00
Features
-
This band saw delivers blade speed ranging from 135 to 395 FPM
and features a feed rate which is regulated by a hydraulic
cylinder for precise cutting.
-
Dayton 21C004 horizontal band saw has a dial control for the
cylinder that is accessible at every stage of the operation and
is capable of being set at any feed rate within its range.
-
This band saw has adjustable ball bearing blade guides to ensure
perfect blade alignment, longer blade life and consistent
accuracy.
-
Dayton 21C004 horizontal band saw is equipped with plastic
casters for smooth mobility & easy portability, and a step
pulley drive train for covering all sawing requirements.
-
This band saw provides an automatic shutoff facility and comes
with an industry rated speed reducer for reducing the overall
cost of the operating band saw system.
-
Dayton 21C004 horizontal band saw features heavy gauge steel
construction for structural rigidity and resisting corrosion on
exposed surfaces.
-
Dayton 21C004 horizontal band saw also features a gearbox that
utilises a hardened worm shaft and bronze worm gear in an oil
bath.
