L & L

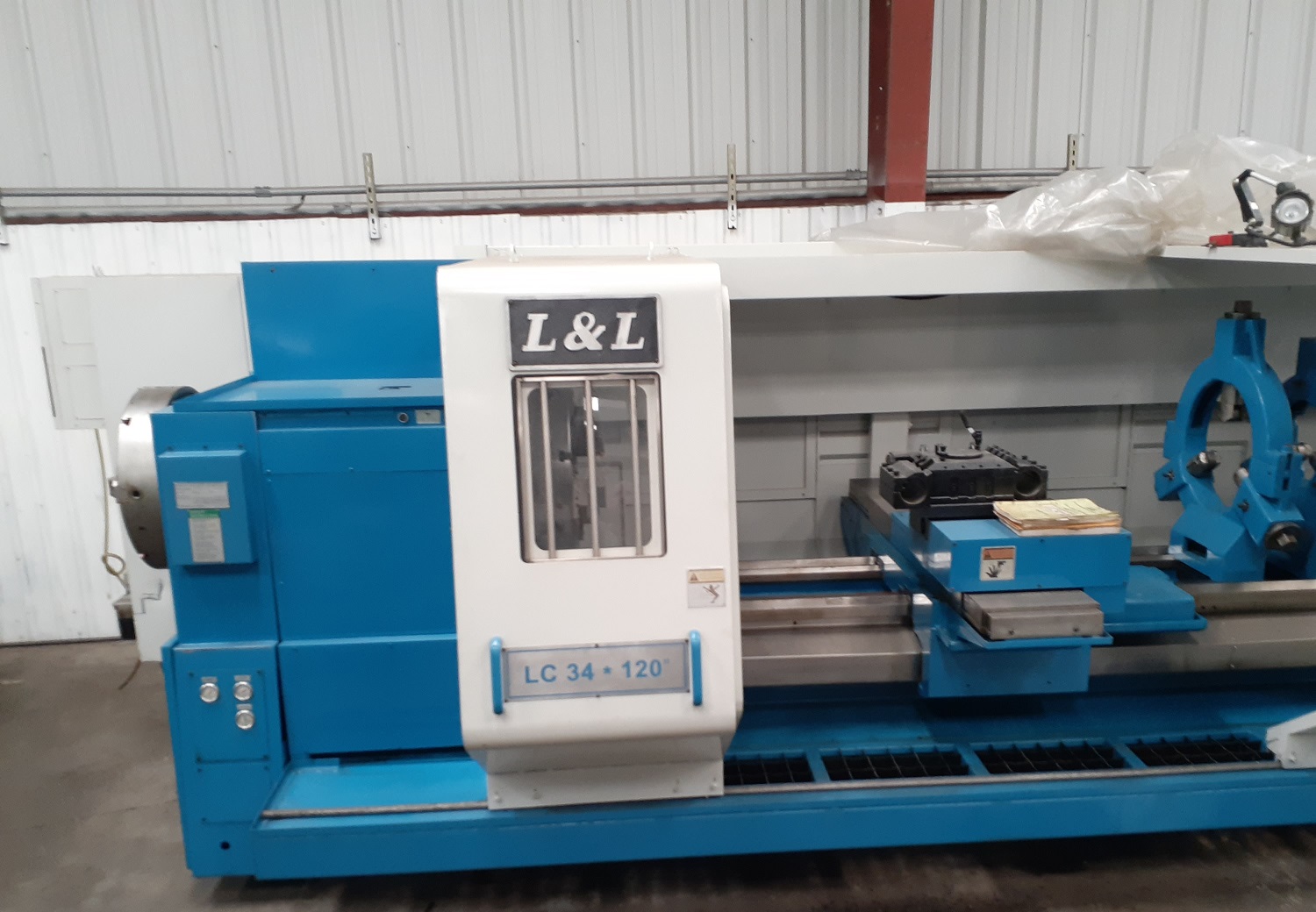

CNC FLAT BED BIG BORE LATHE
Specifications:
Model LC 34

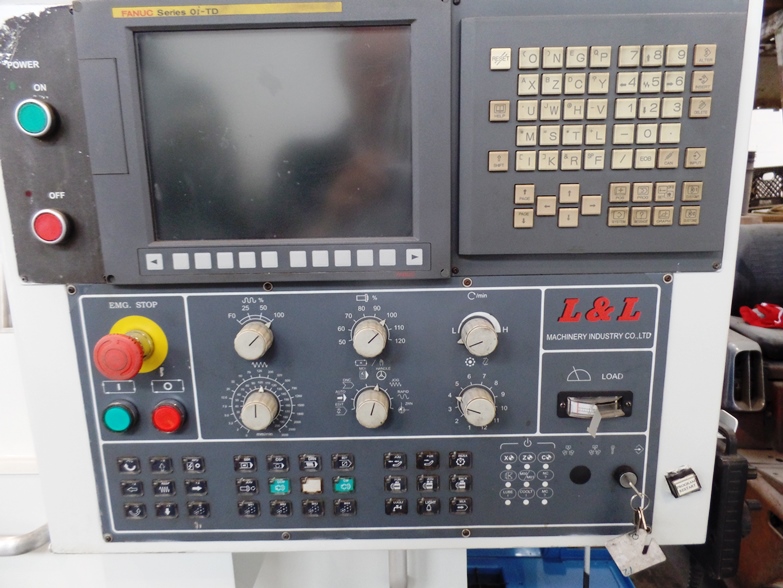

CNC
control
Fanuc OiTC
Serial
number/YOM
TLA203409129/2009
Swing
over bed
34”
Swing
over cross slide
20”
Center
height
17.3”
Width
of carriage
35”
Center
distance
124”
Width
of bed
22”
Spindle
bore
10”
Spindle
nose
A-2-20

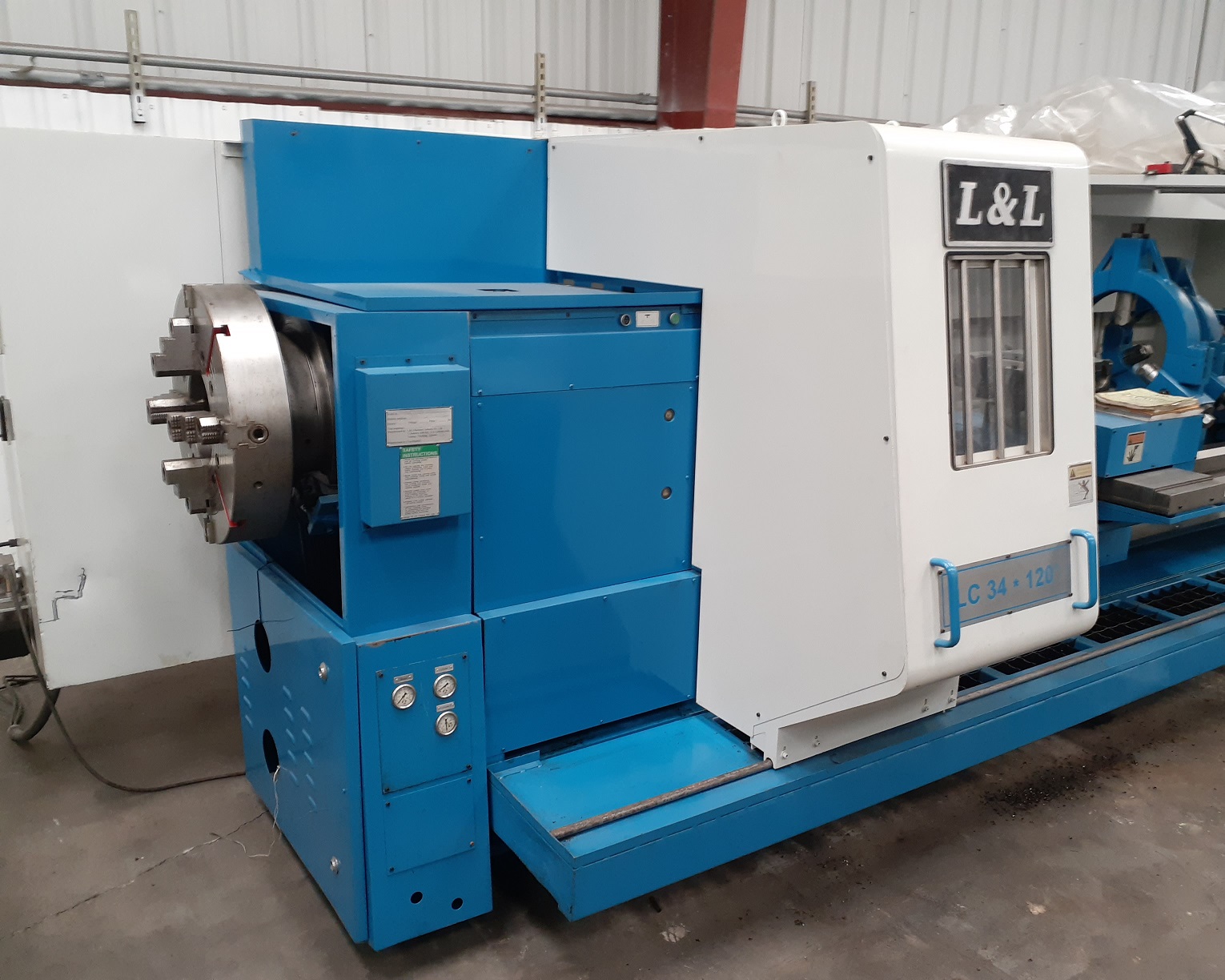

Chucks
F&R Four jaw 24 O.D. x10.5” I.D.

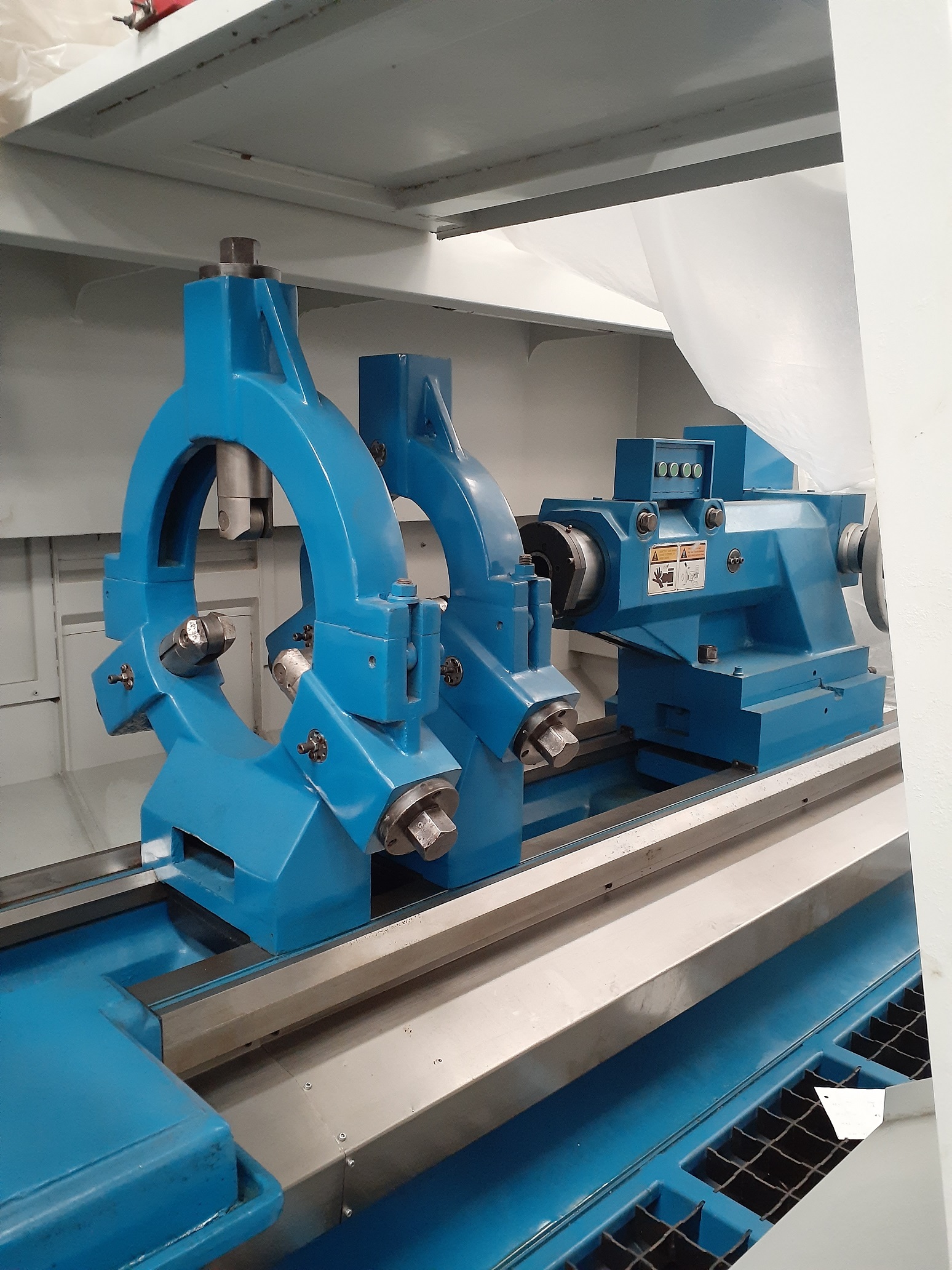

Steady
rests (2) 12” & 18”
Spindle
speed
4-400 rpm.
Tailstock center
MT # 5
Main
motor
30/37 hp.
Turret
stations
4 stations
Tailstock quill diameter
6.4”
Tailstock center
MT #6
Feeds:
X-axis 6M/min.
X-axis
range 0.1mm/min—3000mm/min.
X-axis
travel
20”
Z-axis
rapid traverse
4M-6M/min.
Z-axis
range 0.1mm/min—3000mm/min.
Z-axis
traverse 157”
Coolant
Yes
Chip conveyor
Front chip pan & Rear
Guards
Front door and rear splash guard
Price:
$ 97,500. FOB
Houston, TX. Subject to
Prior Sale.
L&L CNC lathe video link:
