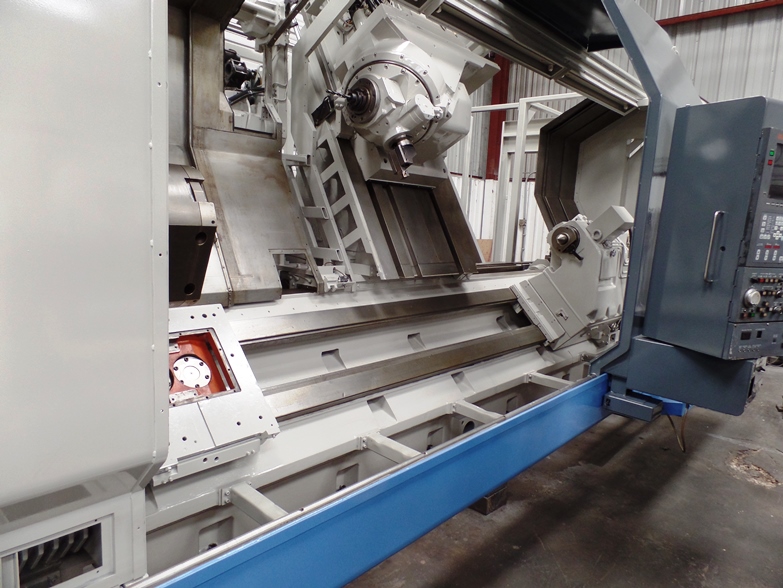

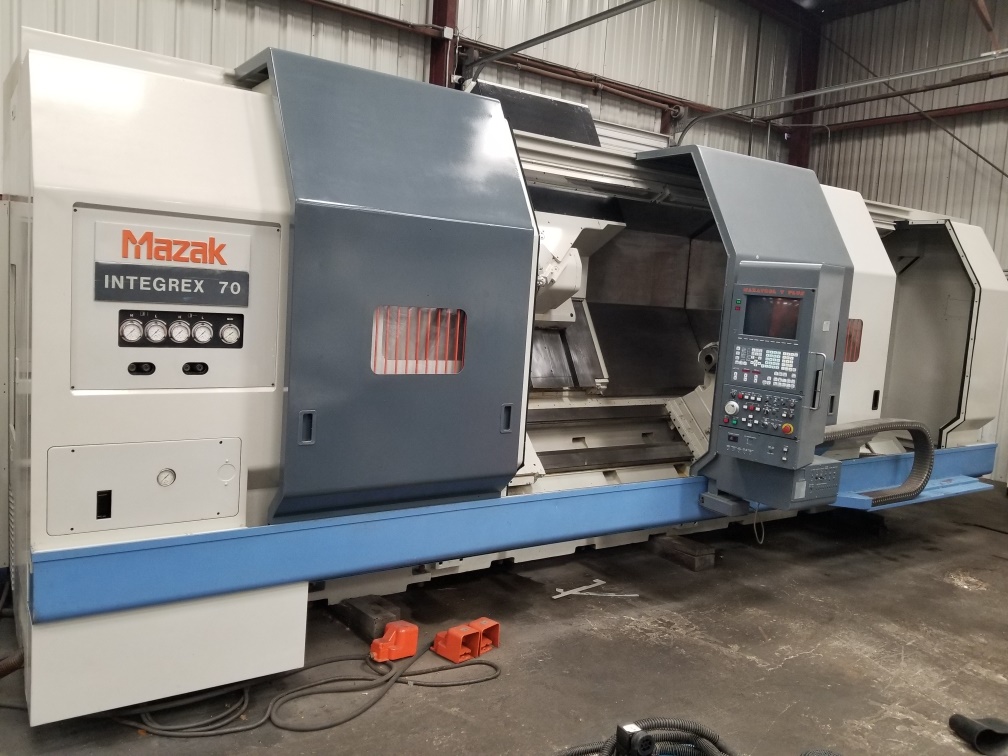

MAZAK INTEGREX 70 CNC LATHE
Specifications:
CNC

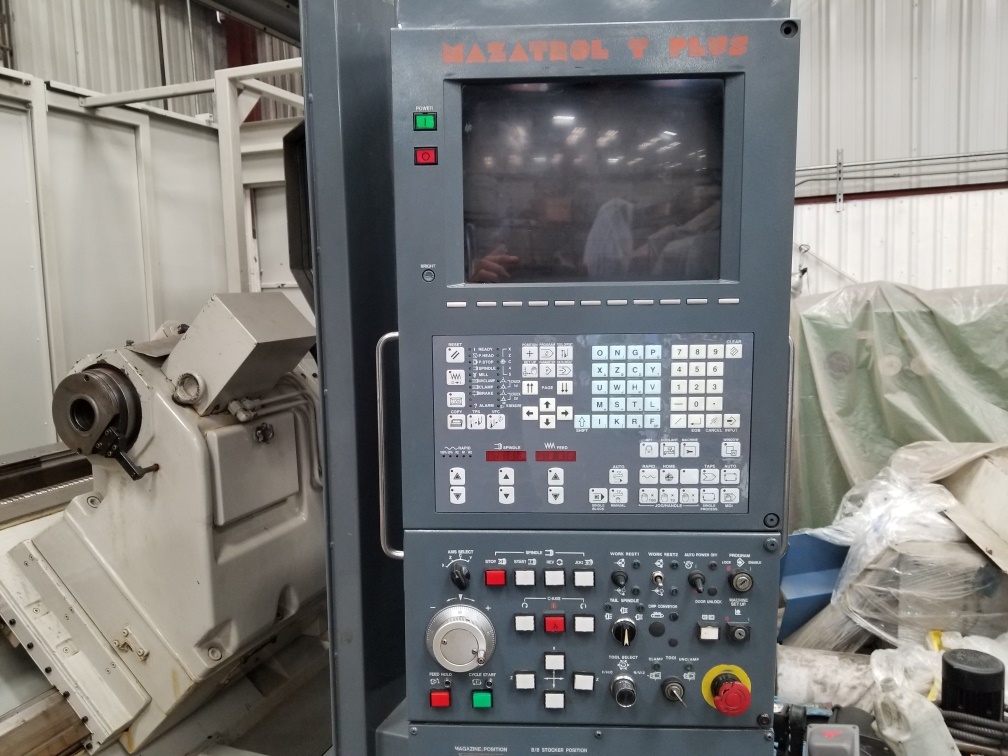

Control Mazatrol
T-Plus Y-axis control
Serial Number/YOM
162134826/1998
Chuck 24”
4-Jaw Chuck
Maximum Swing Over Bed 36"
Maximum Swing Over Cross Slide 30.3"
Maximum Turning Diameter 32"
Maximum Distance Between Centers 121"
Maximum Work piece Weight- Chucked 2,200
Lbs.
Maximum Work piece Weight- Between Centers 4,400
Lbs.
Spindle Speeds 0
- 750 RPM
Spindle Bore 6.5"
X-Axis Travel 27.5"
Z-Axis Travel 121"
Tool
Stations 30
ATC
Rapid
Traverse Rate:
X- Y-Z Axis 472,
315,590 IPM
Rotary Tool Spindle Speed 18
- 3,000 RPM
Rotary Tool Motor 15
HP
Rigid
Tapping Yes
Coolant Yes,
thru milling
head
Chip
Conveyor Yes
Spindle Motor 60
HP
Machine Weight 68,000
lbs.
Manuals Yes
Dimensions, Lathe Body 27’
6” L-R, x 10’ 7” F-B x 9’ H
Dimensions, Chip Conveyor 25’
6” L x 4’ W x 5’ 5” H
Equipped With: Hydraulic Tailstock, Milling, Chip
Conveyor
Coolant, Splash/Chip Guards, Spindle Chiller, Tooling (16 pieces),
Overload Detection and Transformer.
Dimensions: Spindle Chiller: 30” W x 22” L x 51” H. Hydraulic
Unit: 34” W x 25” L x 29” H. Transformer: 34” W x 30”
L x 29” H. Box-Tooling, Manuals: 28” W x 35” L x 26”
H.
Price: $ 159,500. FOB Houston, TX.
Subject to Prior Sale.
