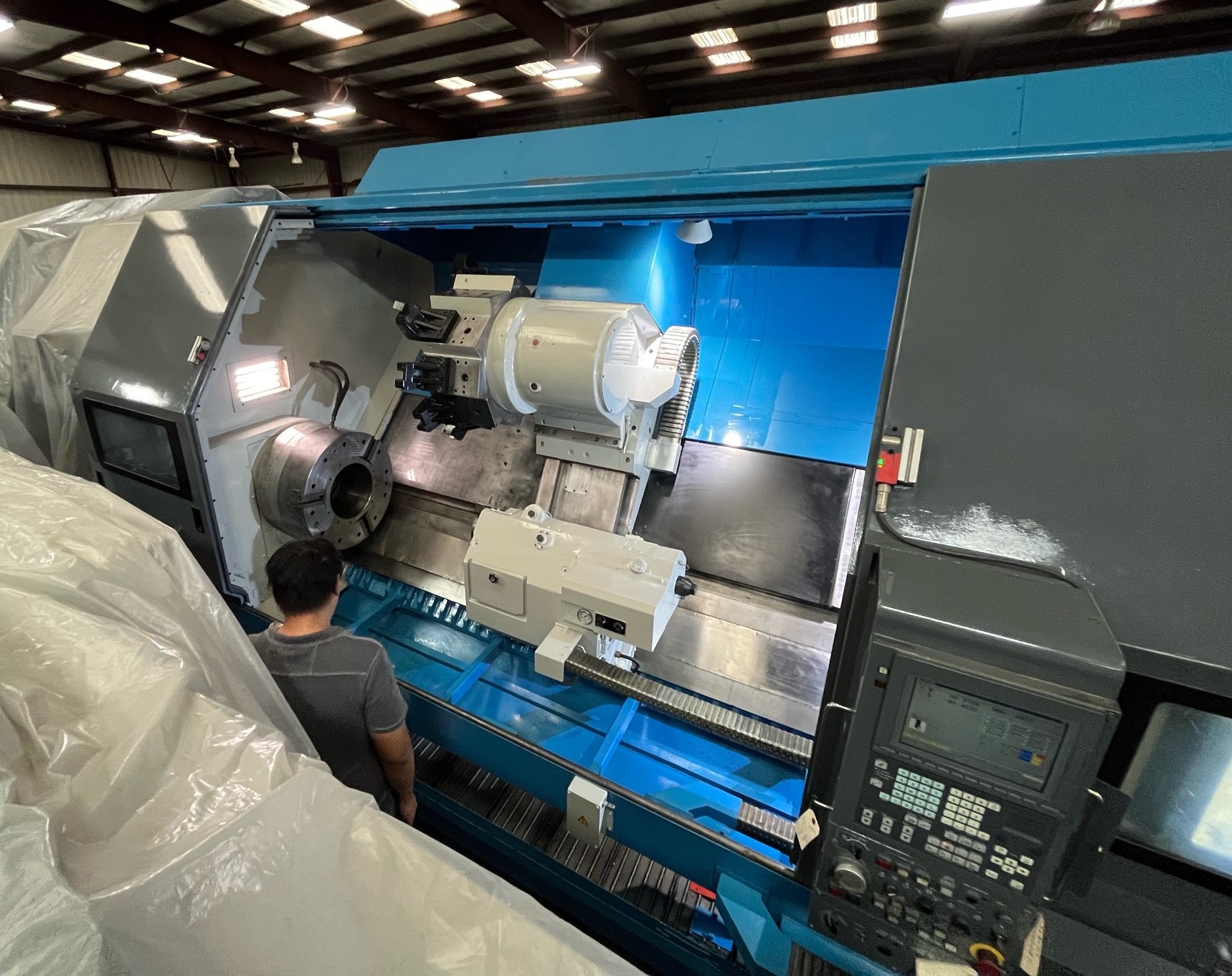

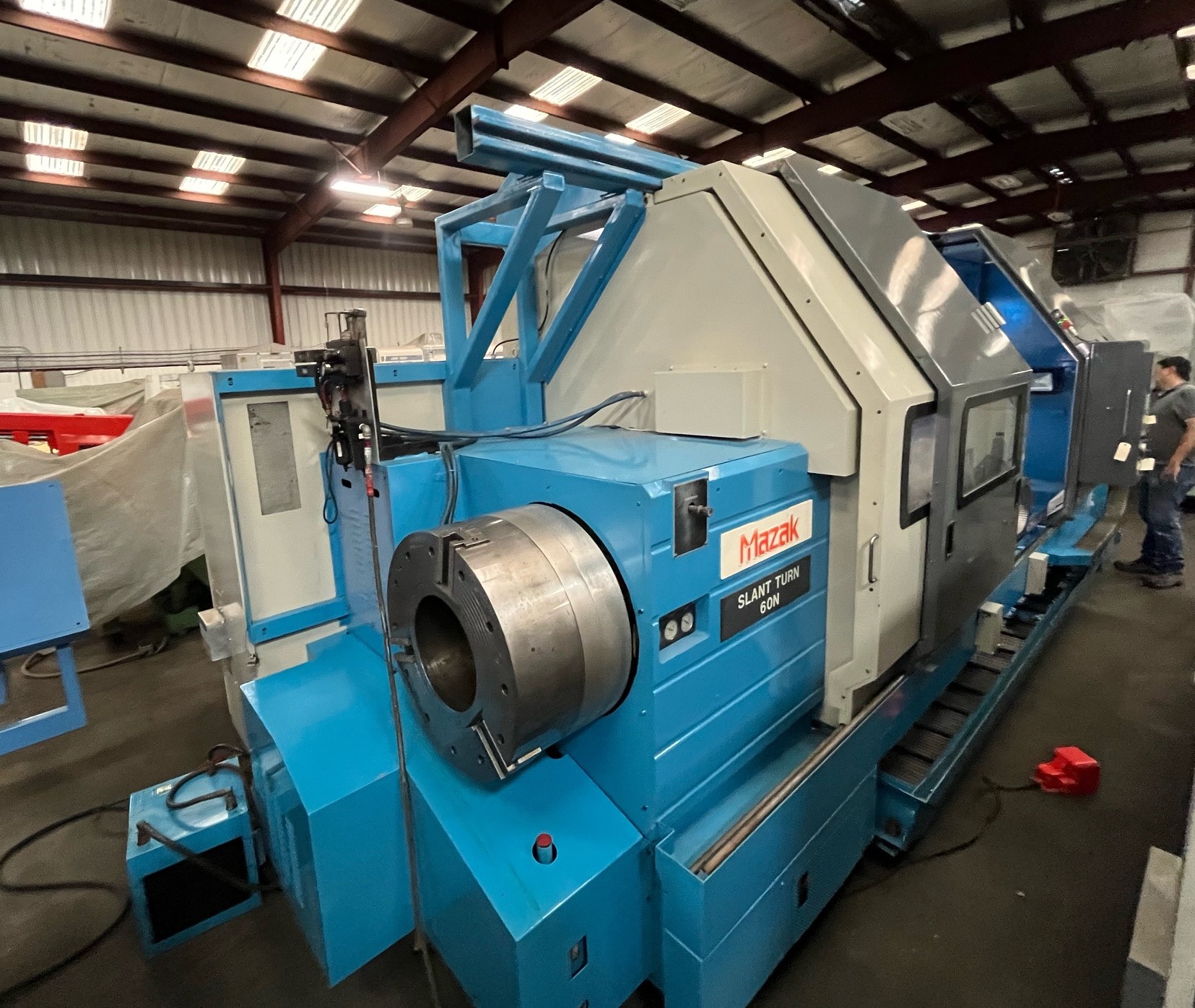

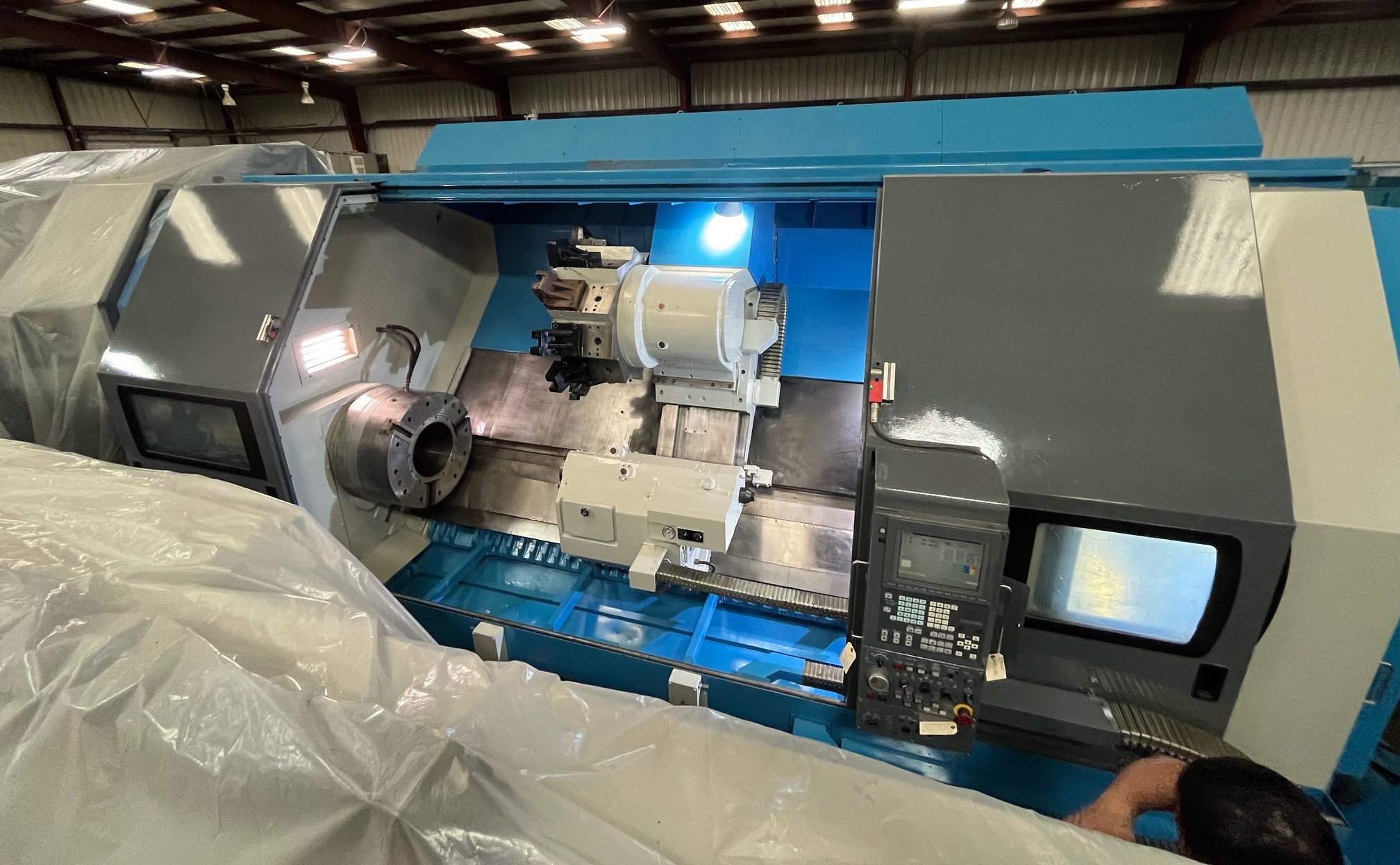

MAZAK SLANT TURN 60N CNC LATHE
Specifications:
Model
Slant Turn 60N
Serial
number/YOM
SN: 153958/2002
CNC
Control
Mazatrol 640-T
Swing over bed
42”
Maximum turning diameter
27.96”
Center distance
121”
Main motor
60 kW/80 hp.
Turret tool positions
15 (10 O.D./ 5 I.D.)
Spindle speeds
2-500 rpm
Gear ranges
4
Spindle nose
A-2-15
Spindle bore
10.2”
Chucks
F&R mounted SMW 630-310 ES (extended
stroke) Air Chucks
Spindle torque
6546 lbs.
Rapid traverse rates
(X/Z) 315/400 ipm.
X-axis travel
25.39”
Z-axis travel
118”
Tailstock taper
MT No. 6
Machine weight
41,000 lbs.
Dimensions 24’ W (Left to
Right) x 9’ L (Front to Back) x 10’ 6” H
Price: $ 249,500. FOB Houston, TX.
Subject to Prior Sale

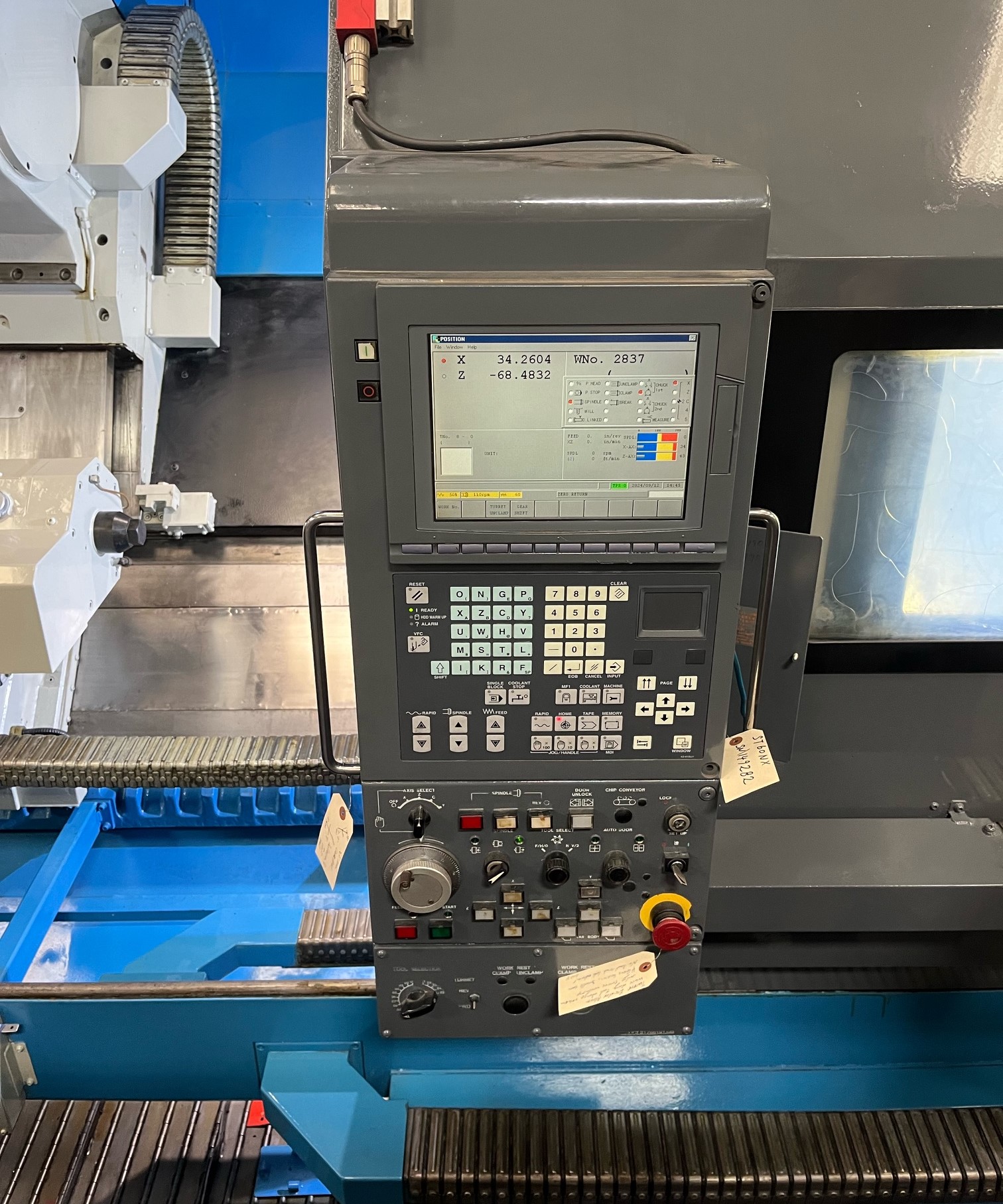

Features: Mazatrol T-32-2 CNC conversational control w/14”
color CRT, Conversational Programming,
EIA/ISO Input Function, Graphic Display, Chip Conveyor, 45’ Slant
Bed Construction with Hardened
and Ground Box Ways.
