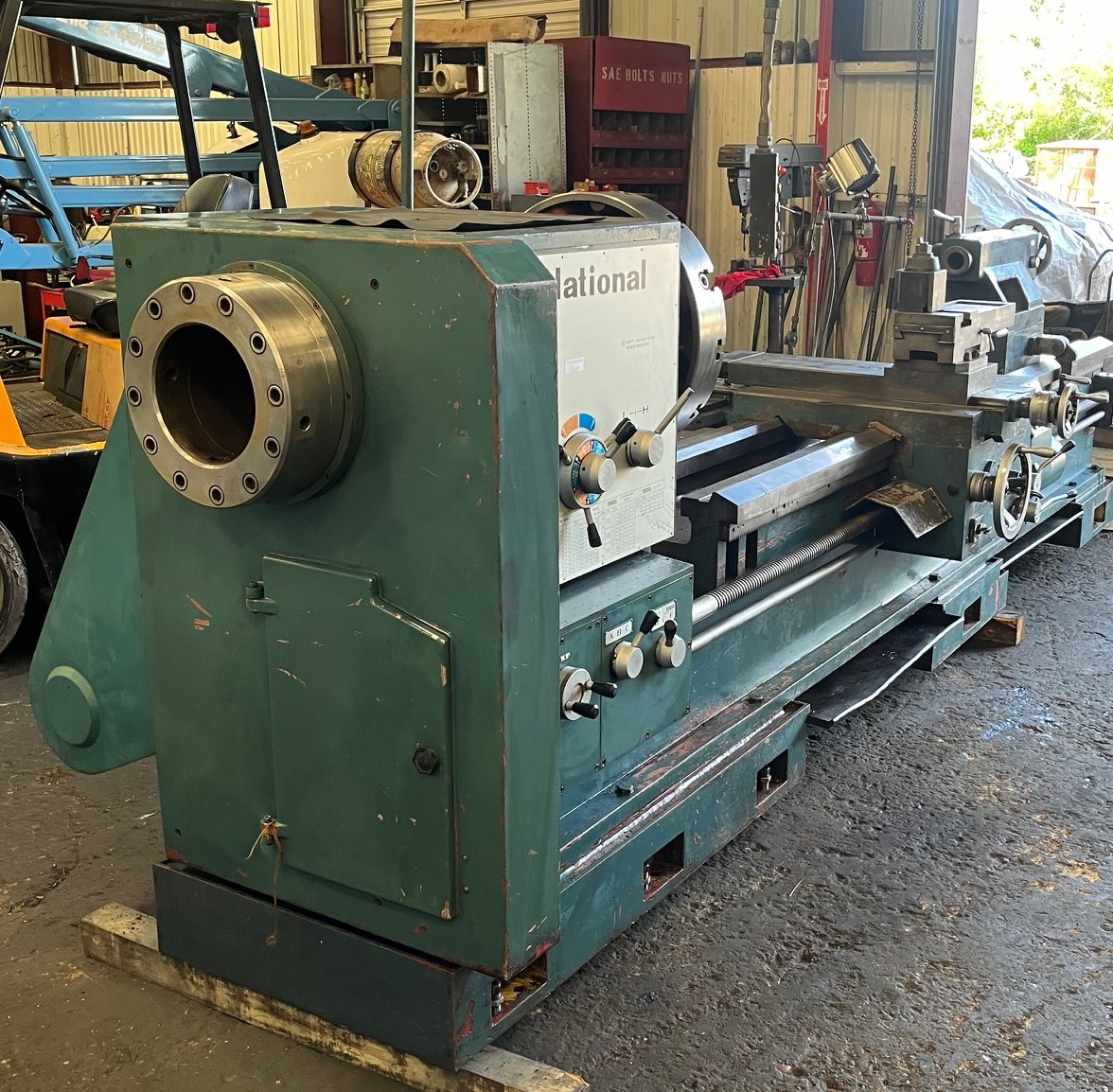

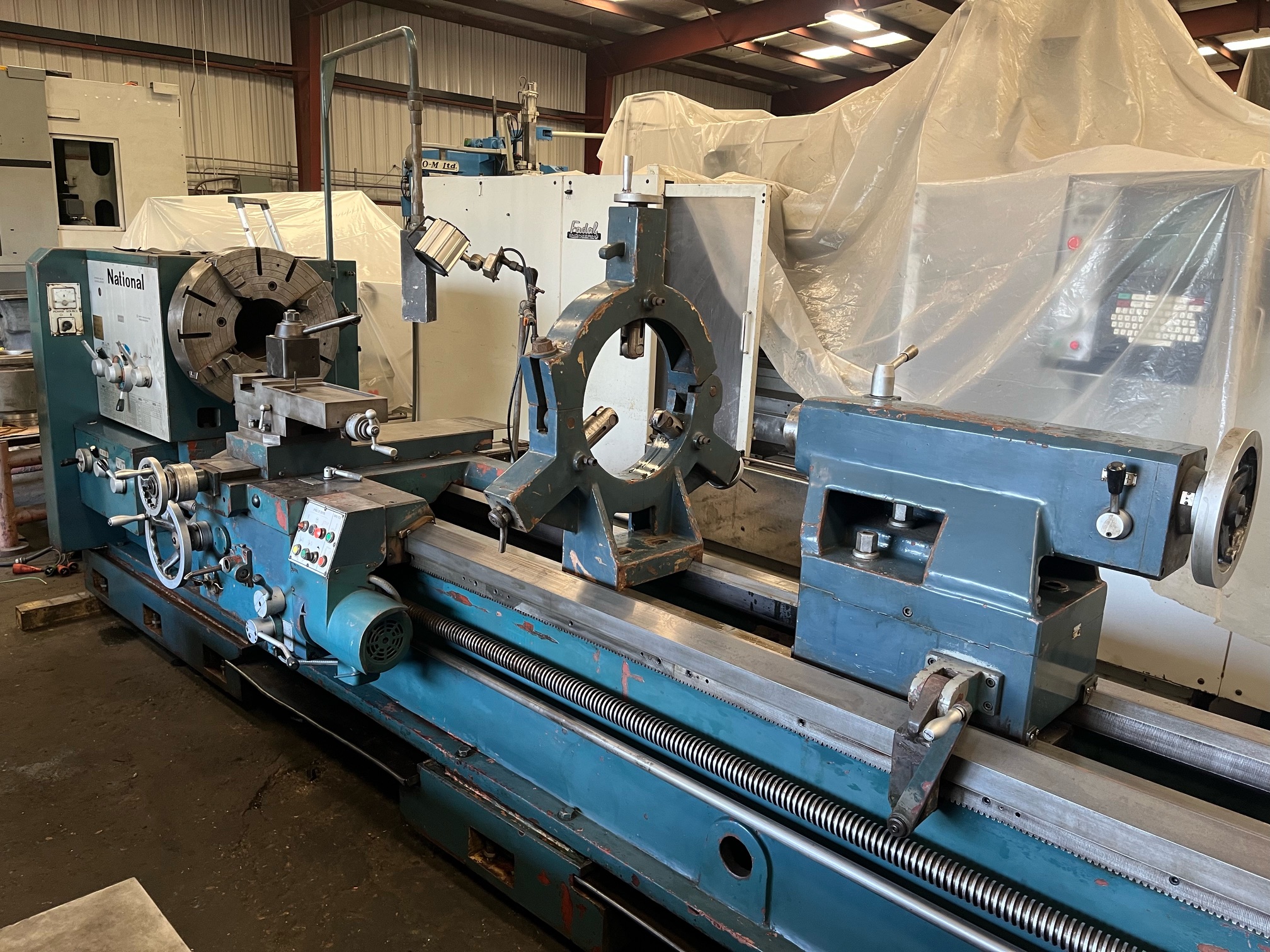

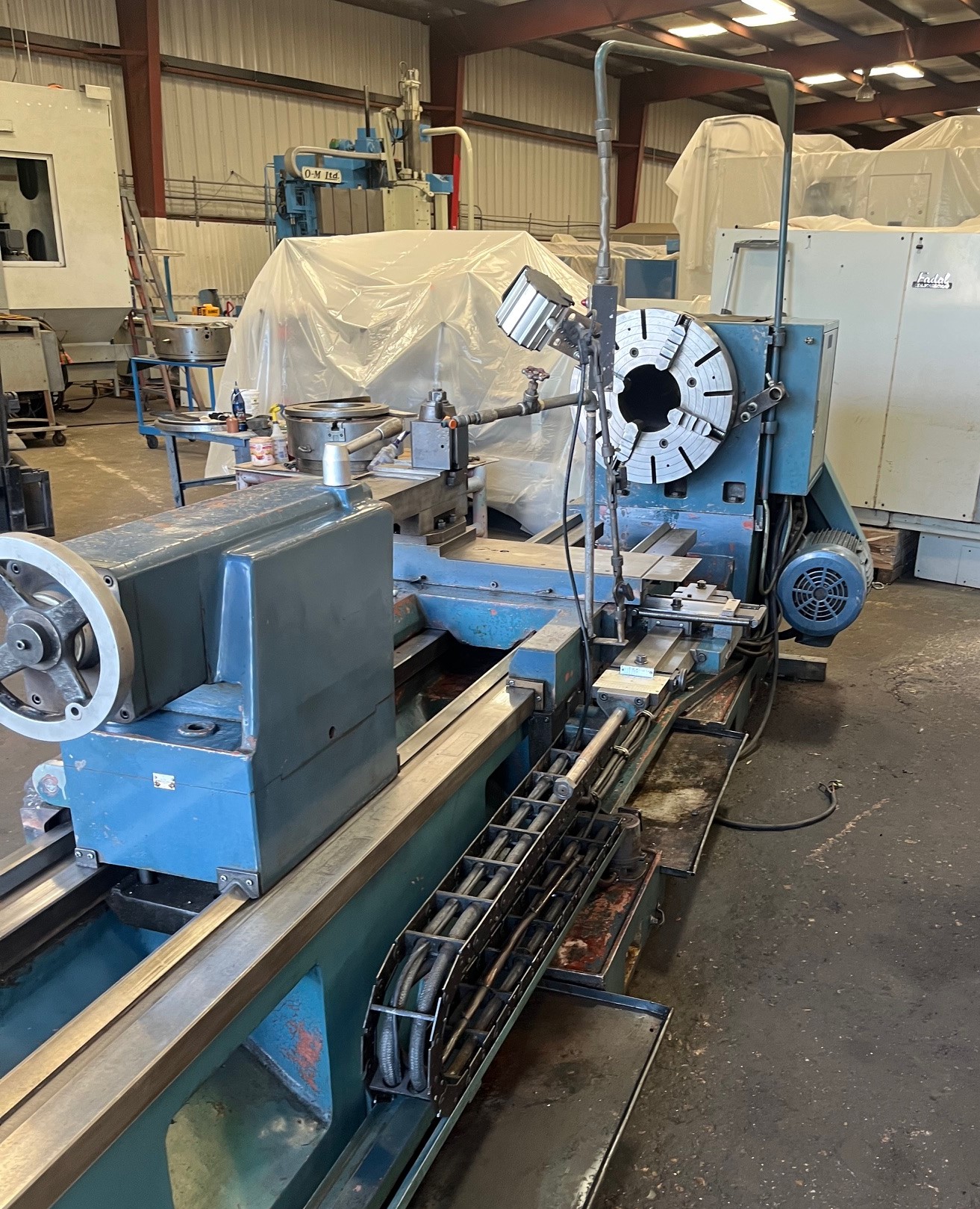

NATIONAL 9” Hollow Spindle Oil Country Lathe
Specifications:
Swing over bed- 32”
Swing in gap- 55”
Swing over cross slide- 22”
Spindle bore- 9-1/4”
Spindle speeds- (12) 5 – 300 R.P.M.
Tailstock taper- #6
Tailstock quill diameter- 4-1/4”
Longitudinal feeds- 0.00437– 0.03508 I.P.R.
Inch threads- 1-7/8 - 24 T.P.I.
Metric threads- 0.625 - 14 MM
Equipped
with:
Control pendent
Removable gap
23-1/2” Front 4 Jaw chuck
Power rapids for longitudinal & cross
2 speed tailstock
Taper attachment
Coolant pump
Steady Rest
20 H.P. Main motor
Machine is wired for 230 volt / 3 phase / 60 H.Z.
Price: $29,500
NATIONAL 9” Bore Hollow Spindle Lathe
