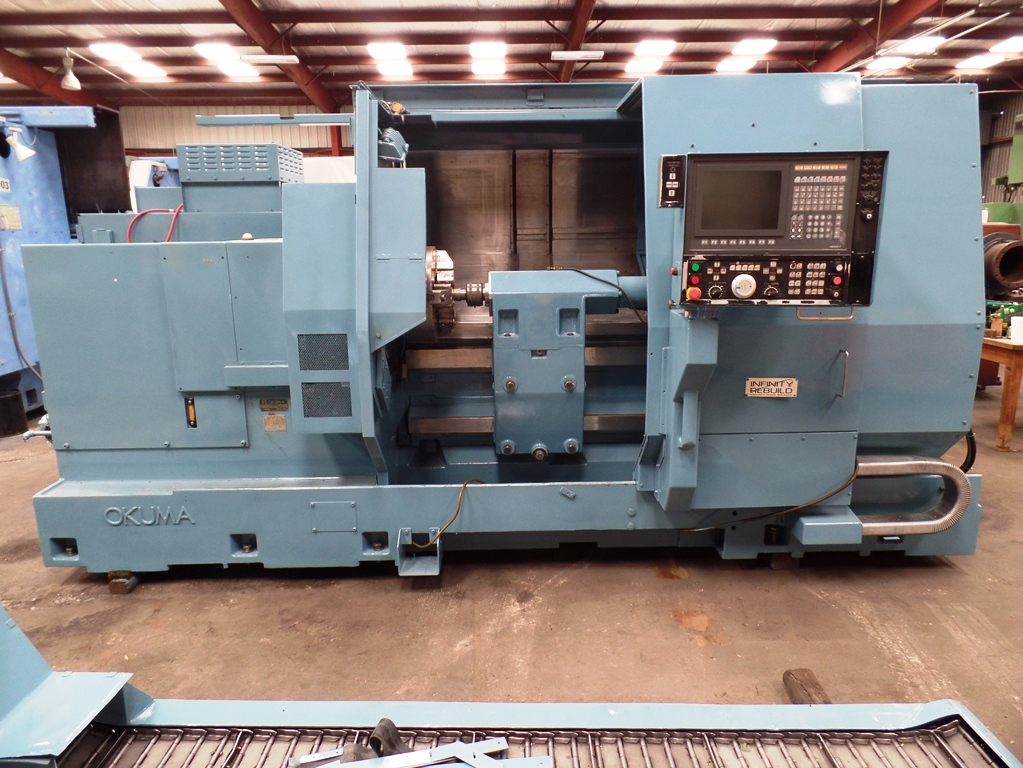

OKUMA LC 40 1SC CNC LATHE

Specifications:

CNC control                                                    OSP 5000G with graphics

Model                                                              LC 40 1SC

Serial Number                                                0102-1734*

Number of Controlled Axis                             2

Maximum Swing Over Bed                            23.62”

Chuck                                                             18” 3-jaw hydraulic

Maximum Turning Diameter                           21.65”

Distance Between Centers                            40”

Spindle Nose                                                  A2-8

Spindle Hole                                                   3.54”

Spindle Speeds                                              10 To 2,500 RPM

Turret Stations                                               12

Tailstock Spindle Diameter                            4.72”

Tailstock Spindle Travel                                 5.91”

Tailstock Spindle Taper                                  No.6 MT

Main Drive Motor                                            40 HP

Approximate Weight                                       21,000 Lbs.



Equipped With:  Chip conveyor, Splash/Chip Covers, Coolant System.



Price.  $ 19,500.  FOB Houston, TX.  Subject to Prior Sale.



Note: Lathe completely rebuilt in 2003 by Infinity Rebuild Inc., Okuma’s exclusive rebuilder located in Charlotte, NC near Okuma America’s headquarters.  The lathe is in good condition.
