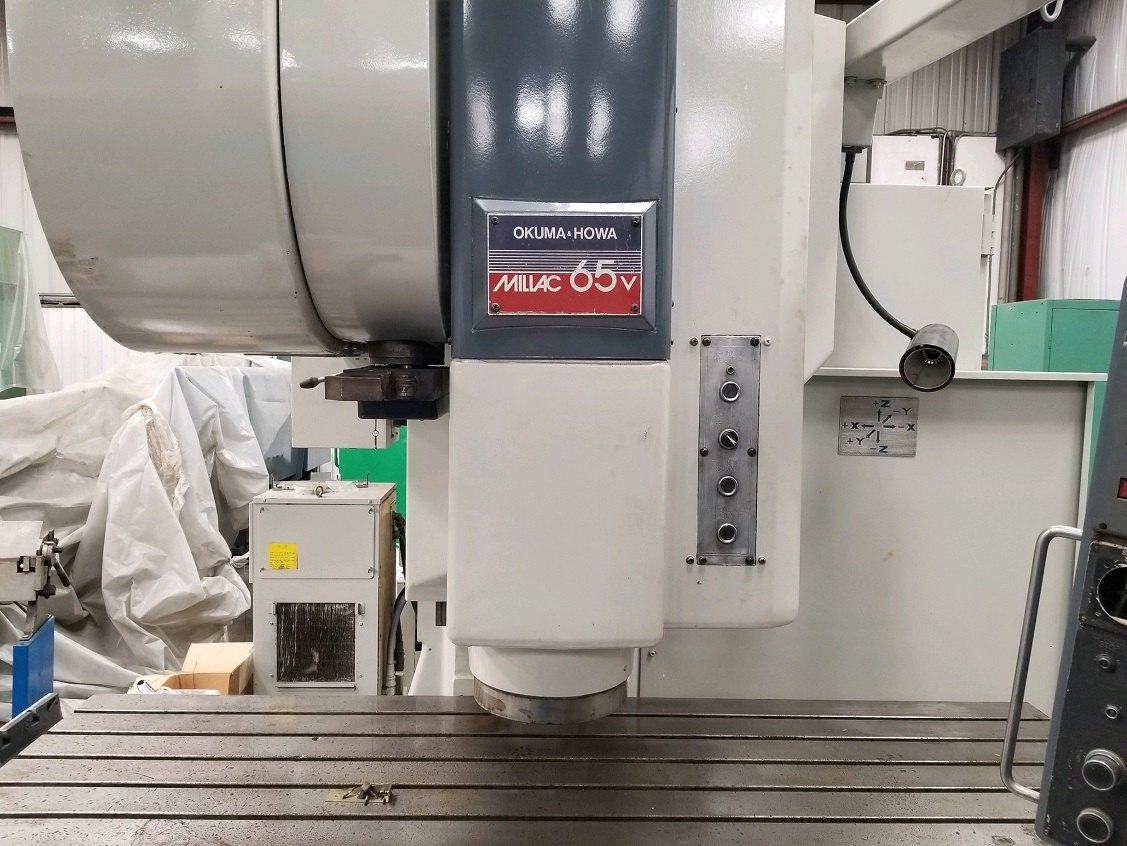

OKUMA & HOWA MILLAC 65V VERTICAL MACHINING CENTER
Specifications:
Model Millac 65V

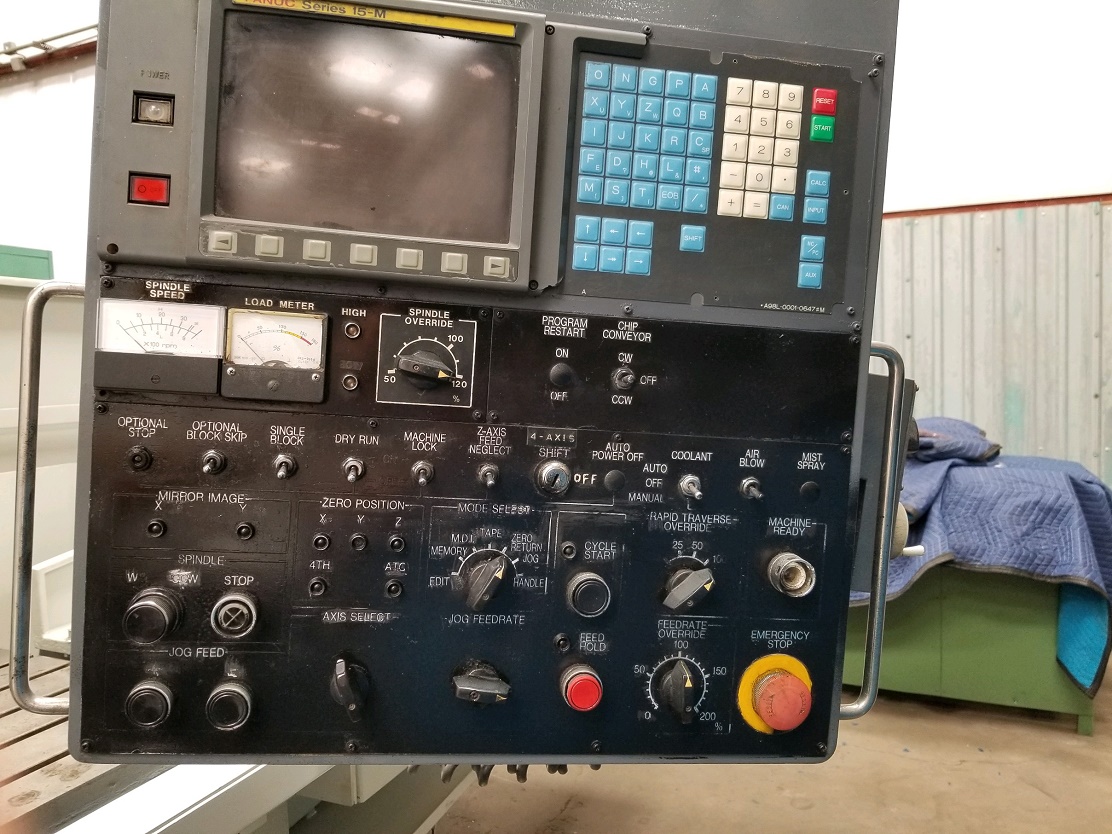

CNC control Fanuc 15M

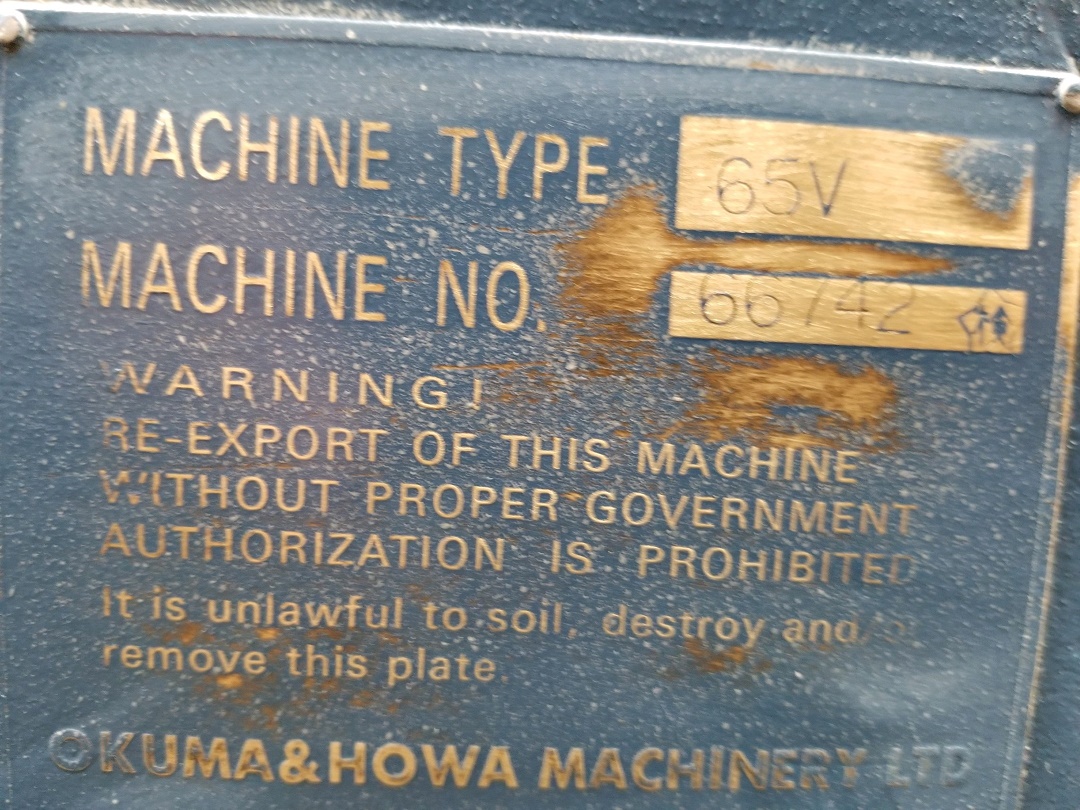

Serial number 66742

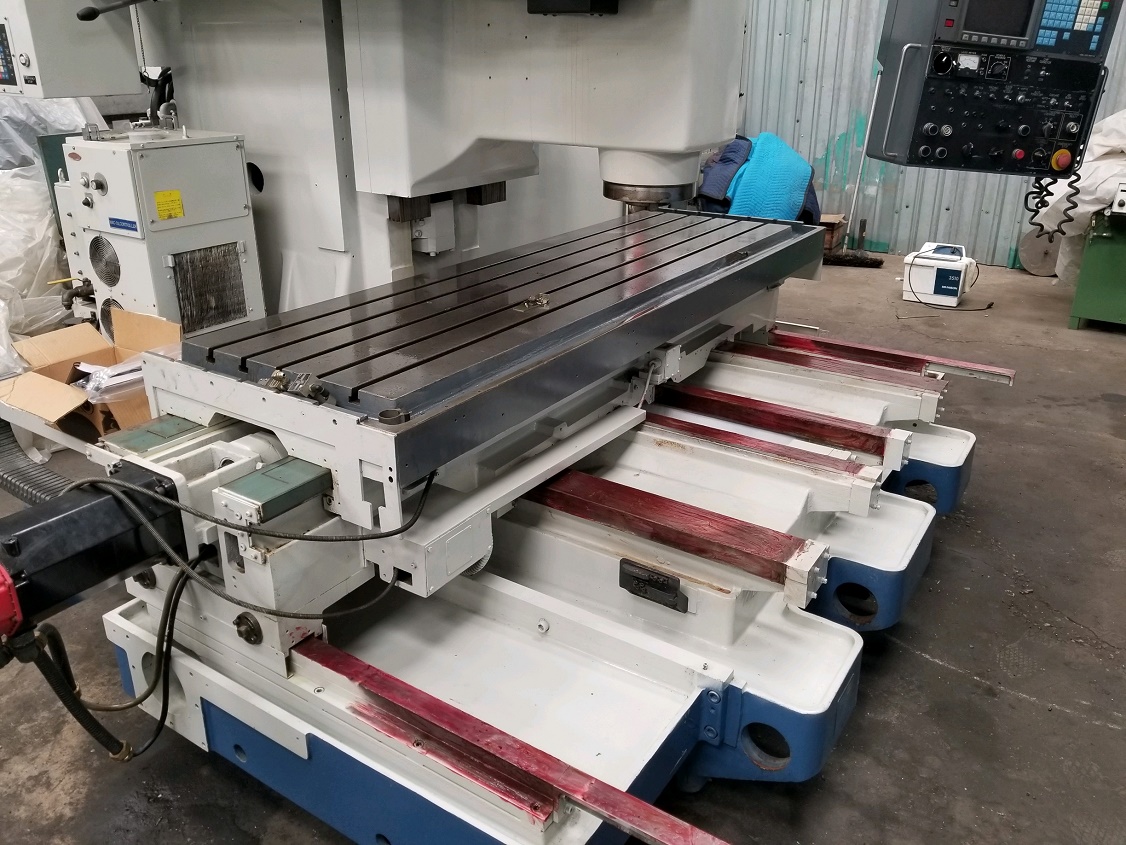

Table dimensions 94” x 29”
Max. table load 4,400 lbs.
Travels, X x Y x Z 78” x 25” x 22”
Cutting feed rate 0.039—196.86 ipm
Spindle taper CAT 50

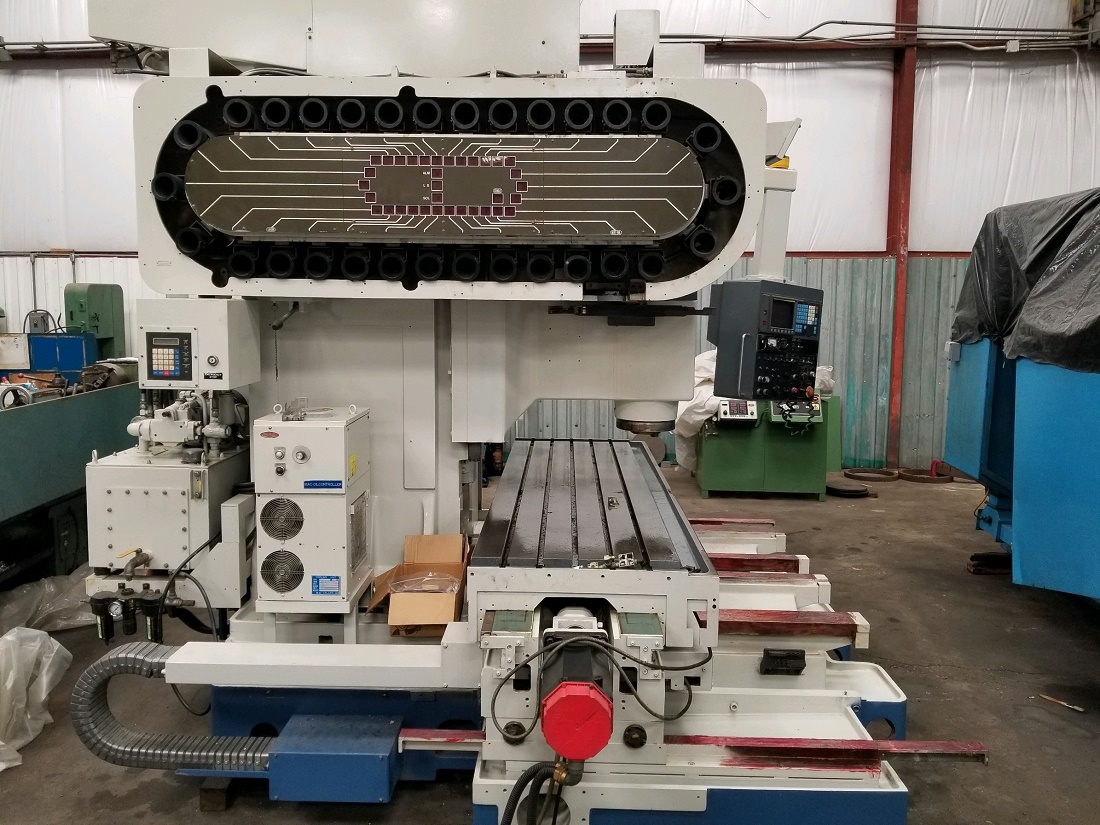

Tool stations 30 stations
Tool change time 5 seconds
Chip to chip -10 seconds
Spindle speeds 20-3,600 rpm (2 steps)
Spindle motor 15-18.5Kw
Coolant tank 220 gallons
Hydraulic tank 200 gallons

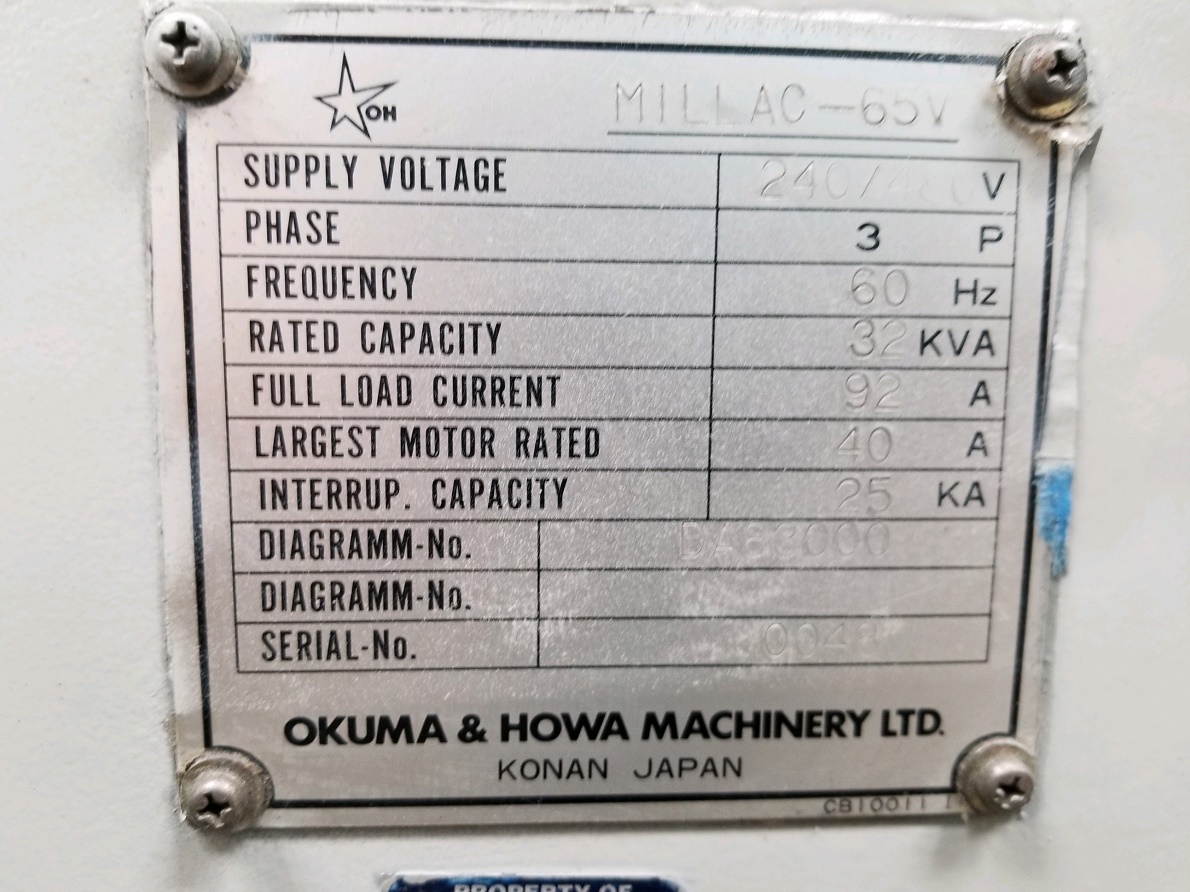

Max. electrical draw 36 Kva
Dimensions 9’ 6” H x 110” W x 126” L (front to back)
Weight 26,400 lbs.
Price: $ 64,500. FOB Houston, TX. Subject to Prior Sale.
Comments: The machine has been completely stripped, cleaned, repaired as required and painted.
One very heavy duty, well-built machine.
