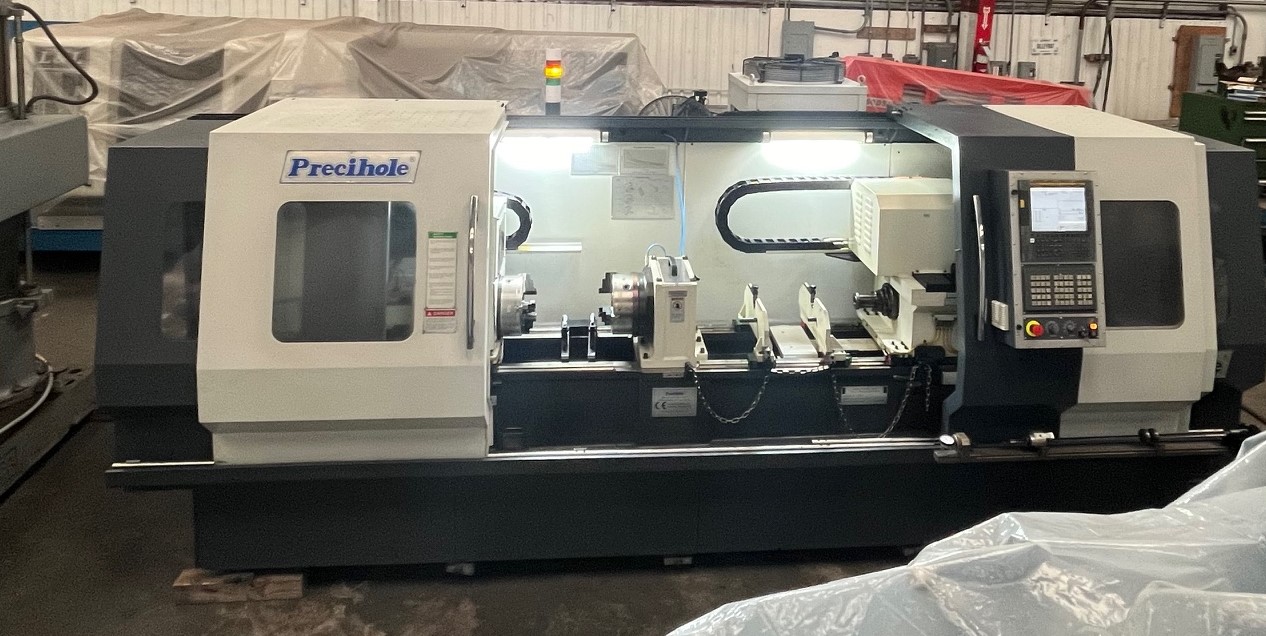

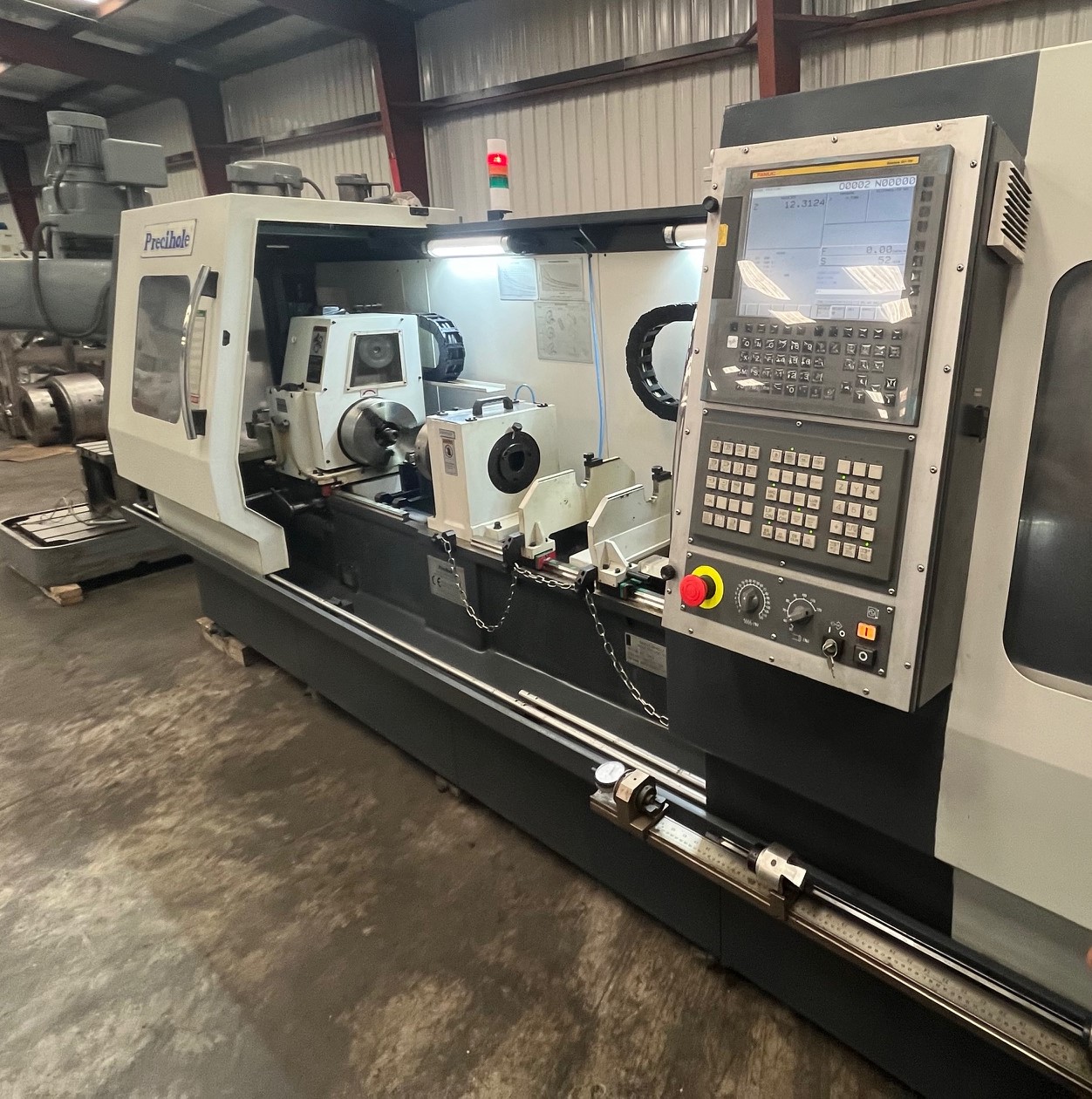

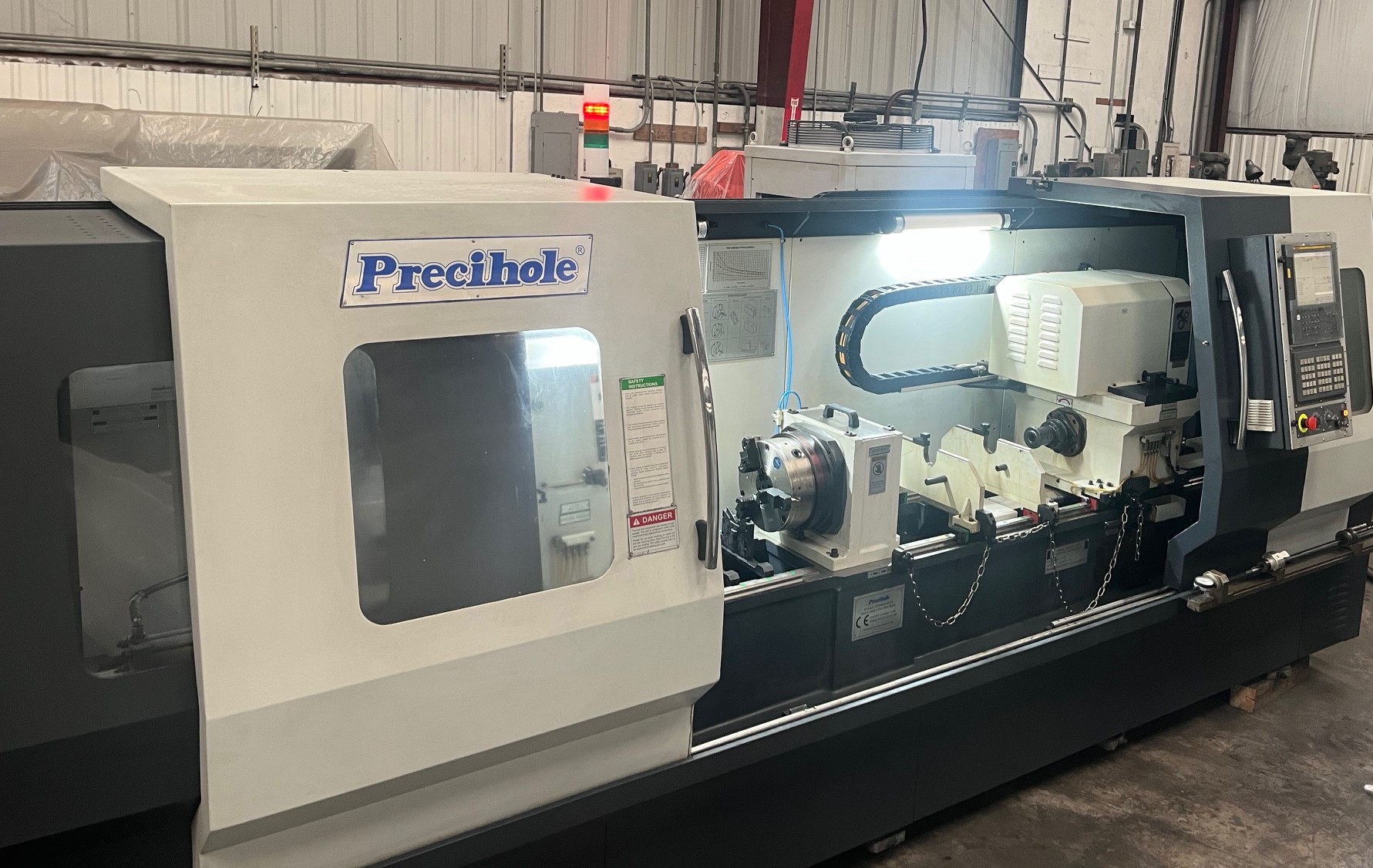

PRECIHOLE CNC SINGLE SPINDLE GUN DRILL

 Specifications:

Control                                              Fanuc Oi-TF

Model                                               GVN 25 C/1-600

Drilling diameter range                    0.315—1”

Number of spindles                          1

Spindle speeds                                  600-3,300 rpm.

Power per spindle                             10 hp.

Maximum drilling length                  40”

Part OD range                                   0.75—3”

Part clamping system                       Hydraulic cone clamping/

                                                           Chuck clamping

Maximum component weight           88 lbs.

Rapid traverse rate                          315” per minute

Drill feed range                                 0—8” per minute

Coolant tank capacity                      277 gallons

Maximum coolant pressure             870 psi.

Weight                                               12,500 lbs.

Dimensions                                        16’ 4” W x 8’ L x 7’ H

  (chip conveyor can be removed saving 1’ in width)

Chip hopper                                       3’ W x 3’ L x 2’ H

Box of tooling                                    24” W x 12” L x 40” H



Precihole gun drilling machines offer the best combination of output parameters

like hole straightness, surface finish and bore tolerance.

Machine Features:

  • Part counter rotation for superior hole straightness
  • Quick clamping arrangement for ease of loading and unloading parts
  • Use of ball screw and servo drives for linear motion
  • Multiple tool steadies to provide solid tube support
  • Rotating cone or self-centering chuck arrangement for part clamping
  • High pressure coolant and fine filtration system
  • Oil chilling and automatic lubrication

YouTube: https://youtube.com/shorts/HCmIeM1iSsk?si=m3bzLLaKnnJ4KDZi

Price:  $ 99,500.00 Houston, TX. Subject to Prior Sale.
