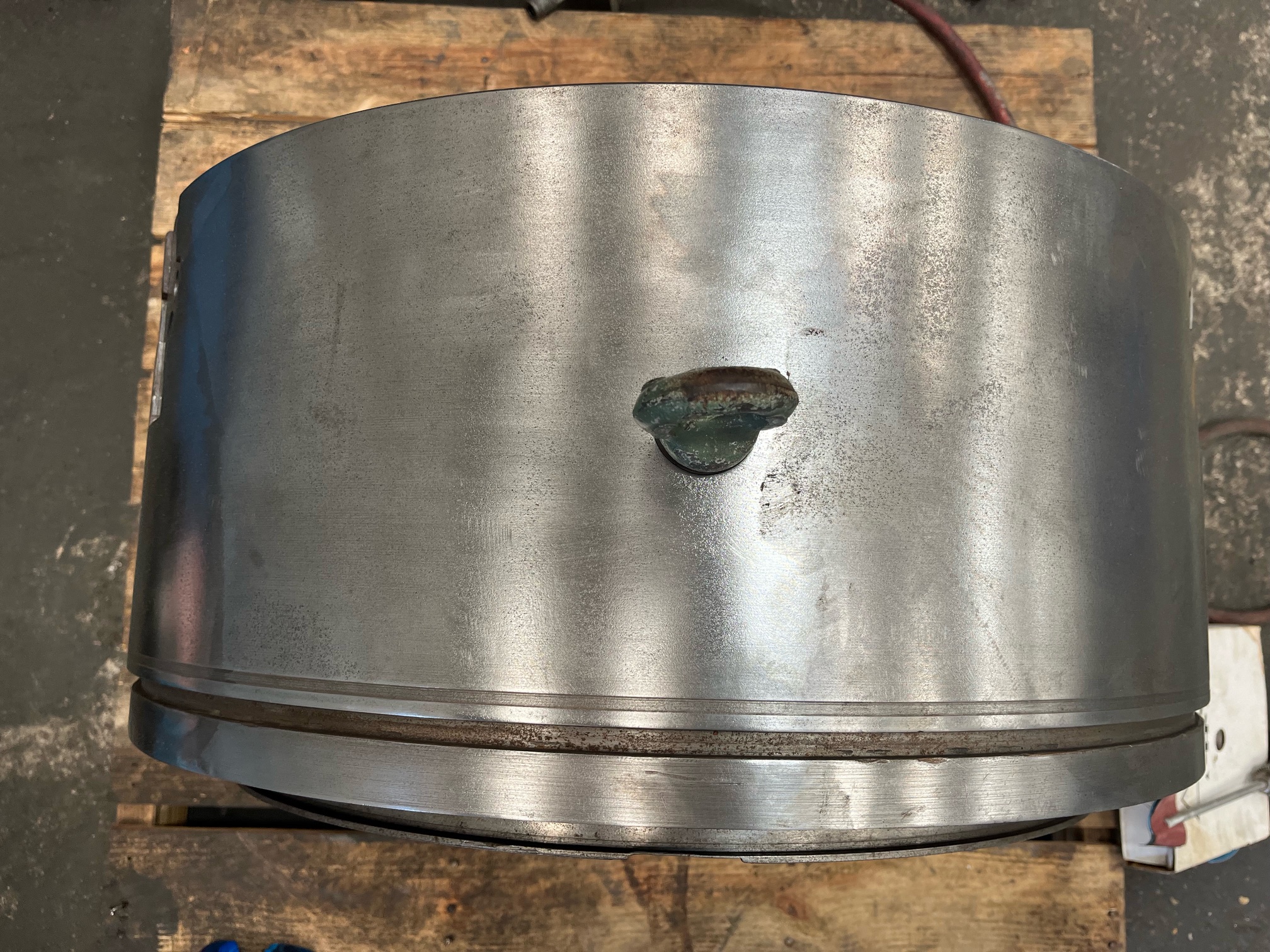

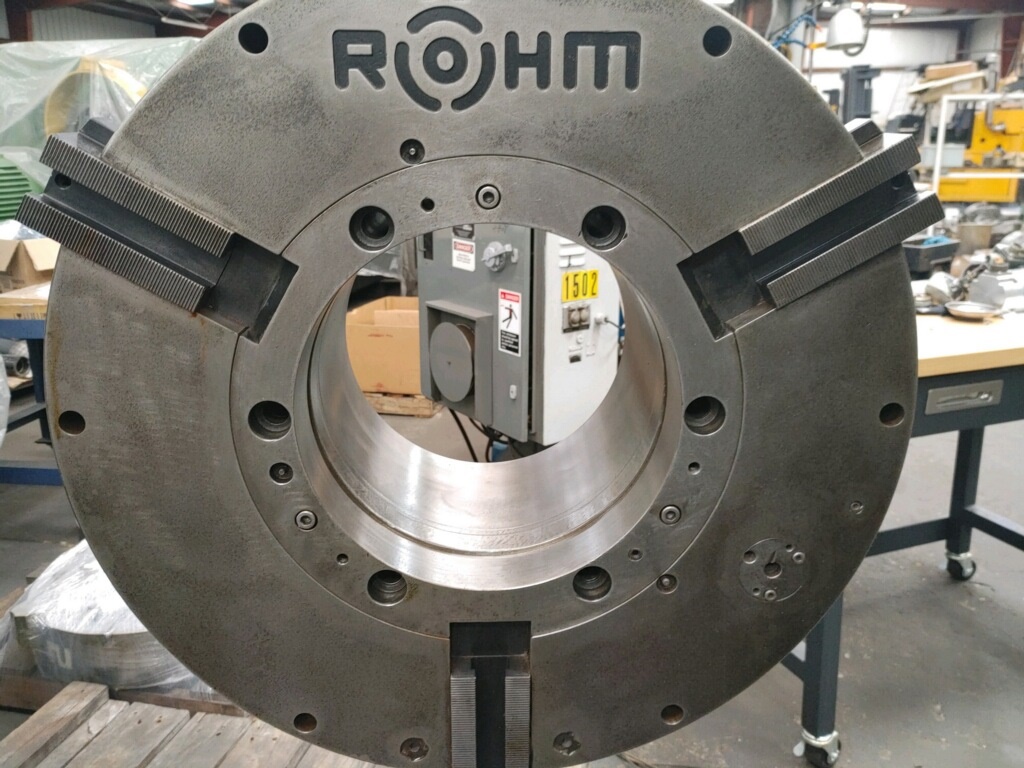

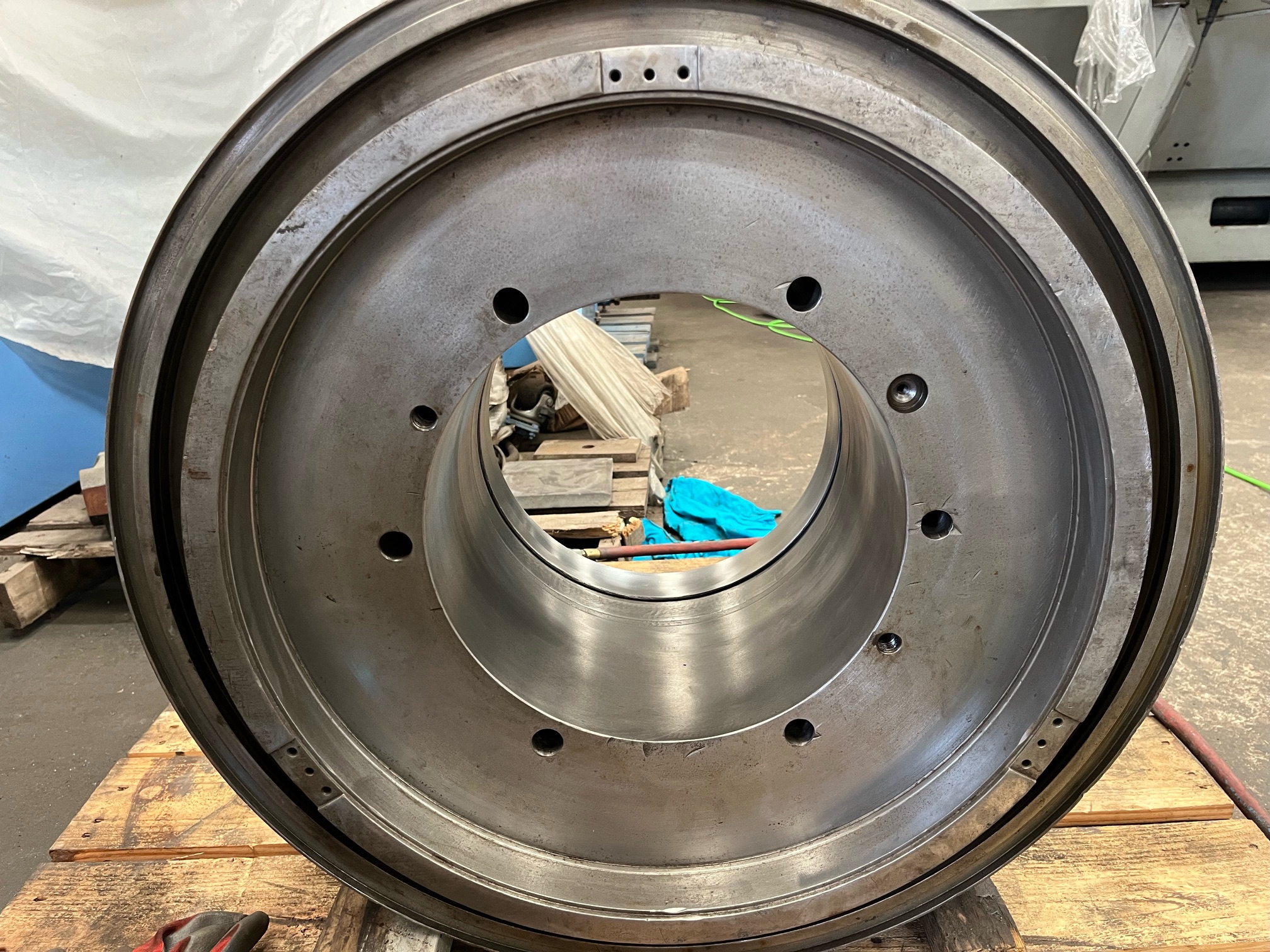

ROHM LVE 630-325 EXTENDED STROKE AIR CHUCK
Specifications:
Model
ROHM LVE 630-3-325 ES
Serial number
None
Diameter, OD
26.75”
Thru hole, ID 12.8”
Spindle nose
Flat back
Stroke per jaw 1.00”
(25.4 mm)
Clamping stroke per jaw
0.33” (8.5 mm)
Jaw serrations
3/32 x 90’
Maximum rpm
900 rpm
Maximum clamping force
280.0 kN at 6 bar or 90-120 lbs. shop air)
Weight without top jaw tooling
1,100 lbs.

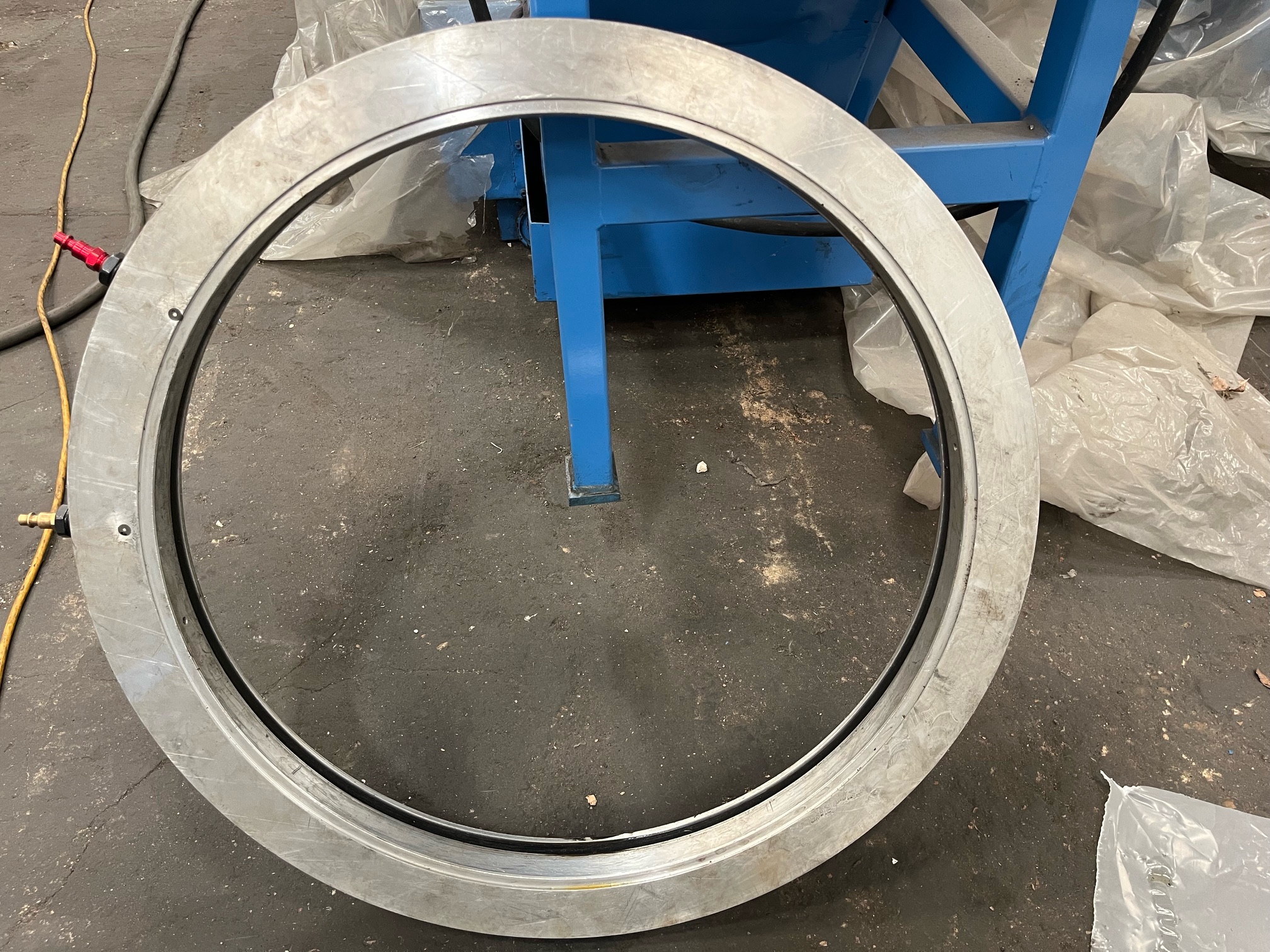

Included with the chuck: Air distributor ring.
Price: $ 24,500. FOB
Houston, TX.
Condition: Good. New cost about $ 56,000. The chuck
has been disassembled, cleaned,
and re-assembled, tested in both the open and closed position.
Sold with a 30-day return
privilege.
