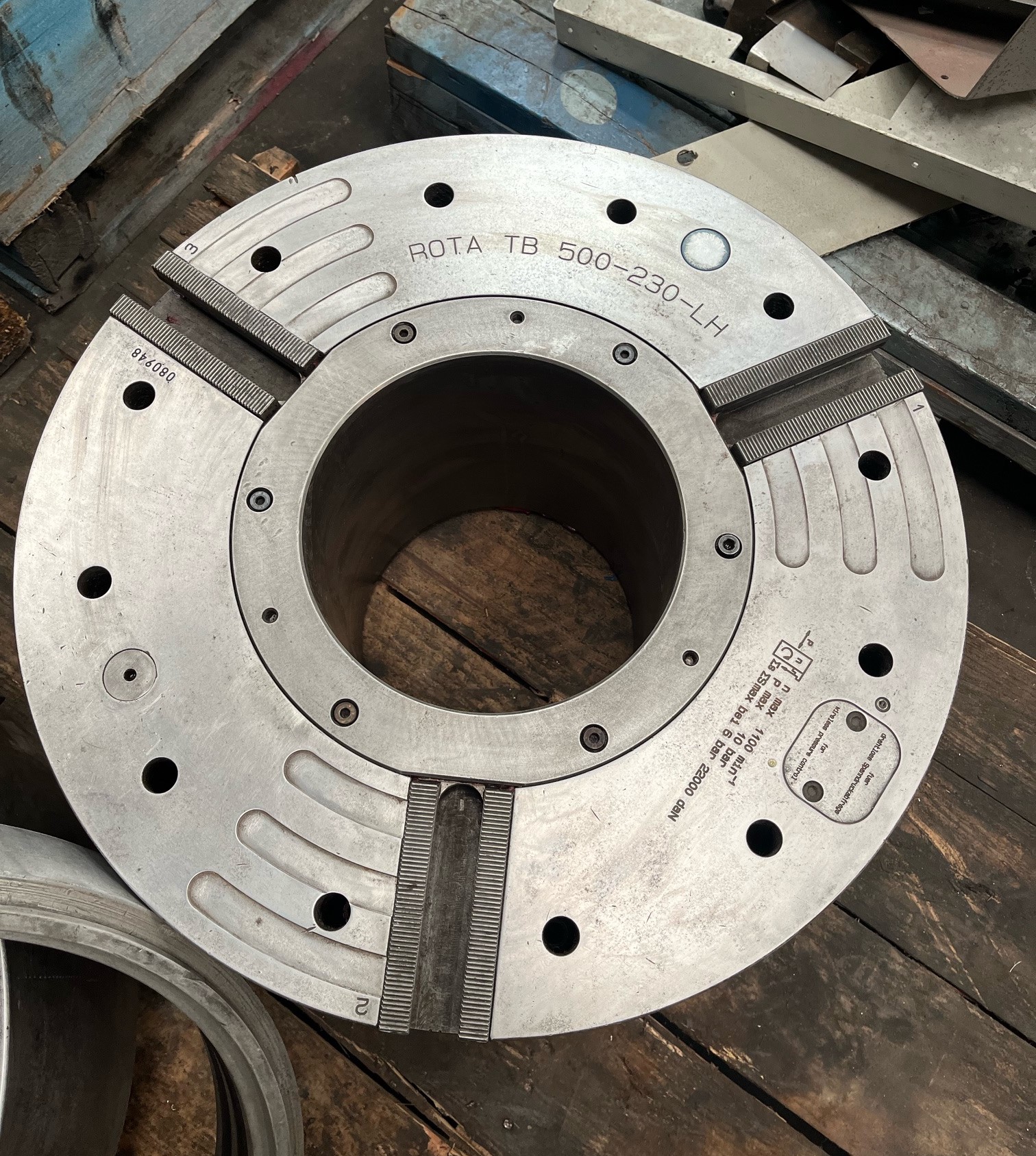

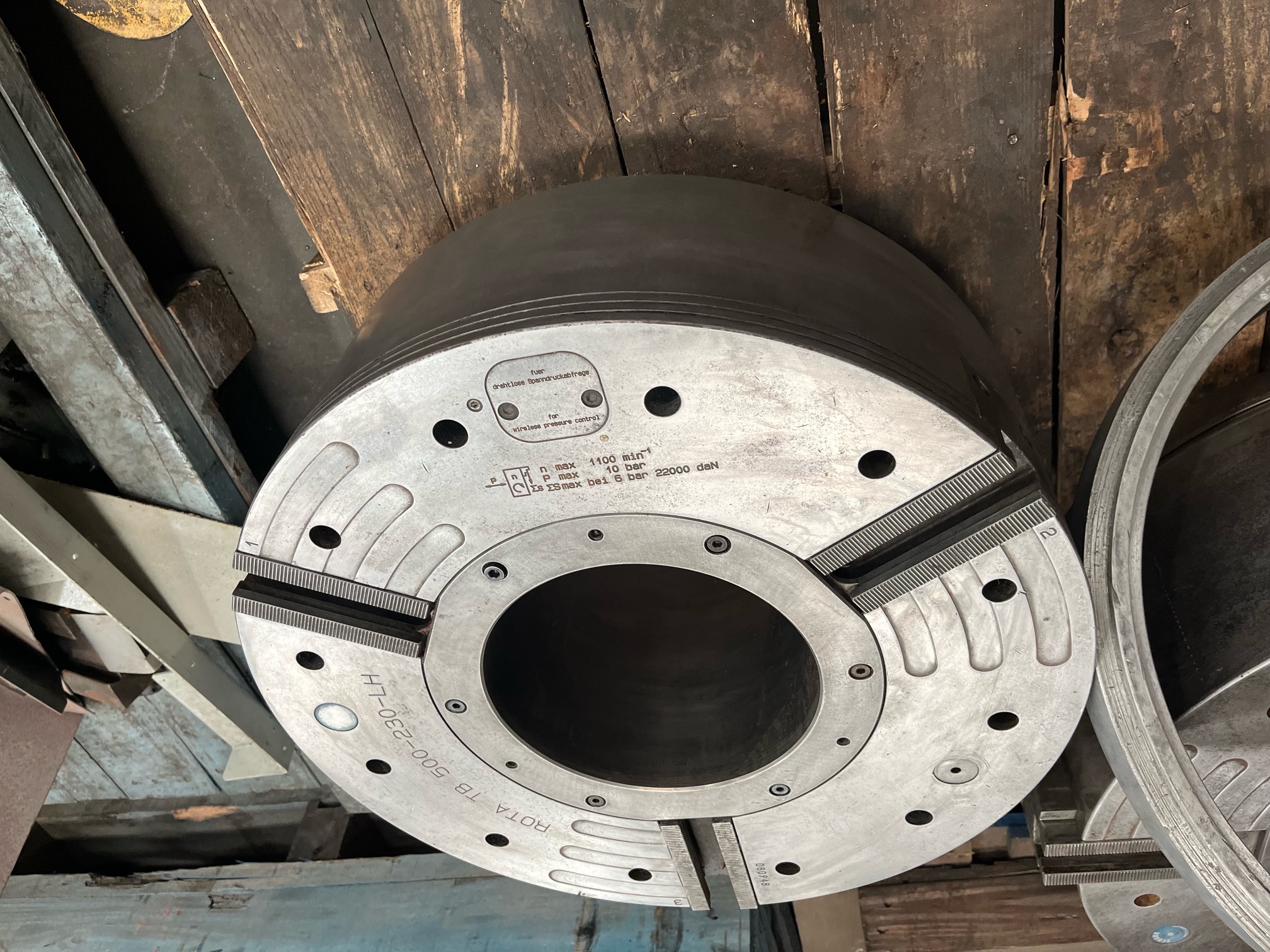

SCHUNK ROTA TB 500-230 LH EXTENDED STROKE AIR CHUCK
Specifications:
Serial number
080948
Chuck diameter
500 mm (19.68”)
Thru hole
230 mm (9.06 ”)
Spindle nose
flat back
Stroke per jaw
25.4mm. (1”)
Fast stroke per jaw
16.9mm. (2/3”)
Clamping stroke per
jaw
8.6mm. (1/3”)
Jaw serrations
3/32 x 90’
Maximum
rpm 1,300 rpm
Max gripping
force at 6 bar
42,714 lbs.
Weight without top
jaw tooling 724 lbs.
Price each: $18,500. FOB Houston, TX.

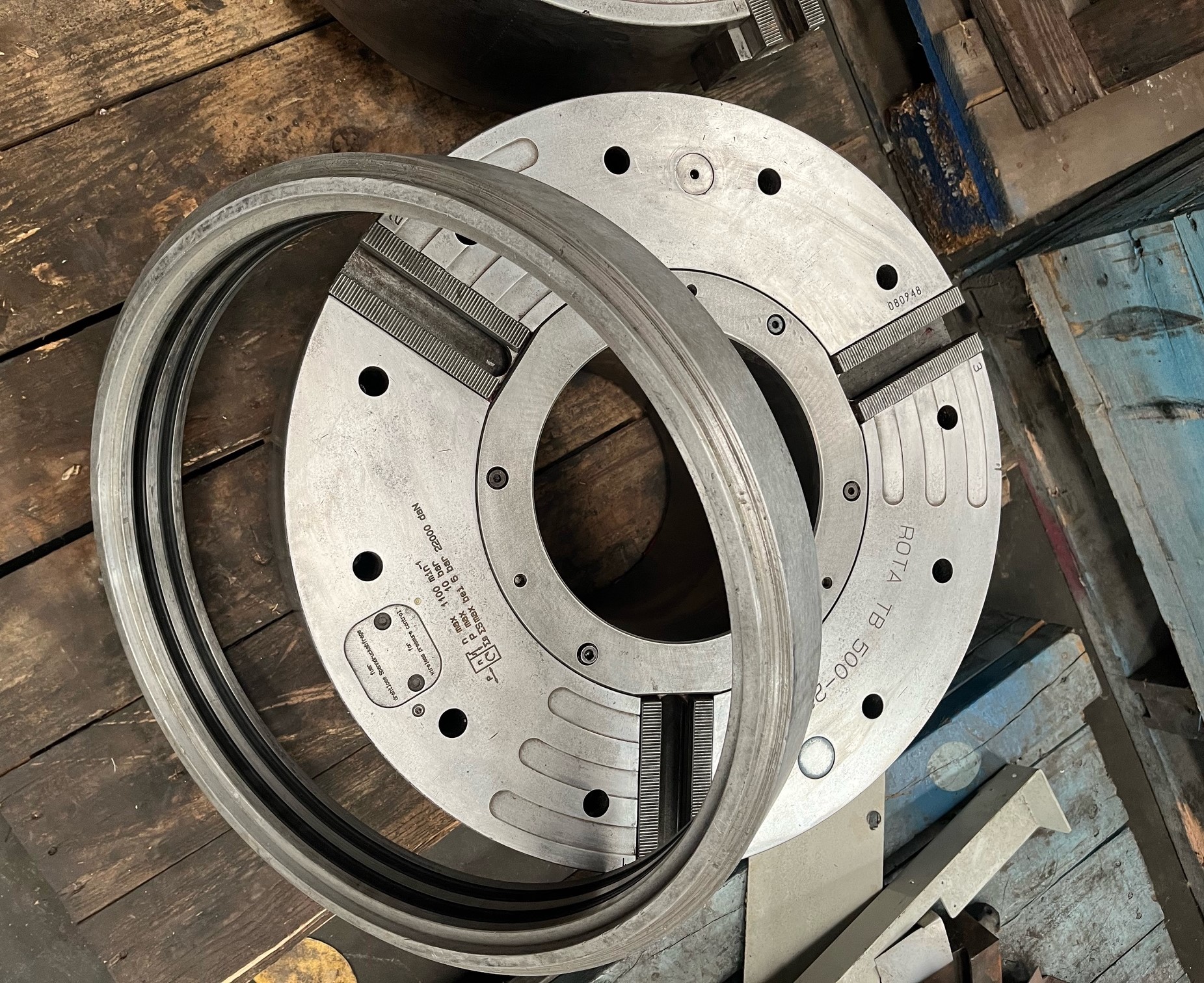

Included with the
chuck: Air distributor ring.
Condition: Good. The chuck has been tested overnight in both the
open and closed
position to assure
it holds pressure.
Delivery: Stock,
our warehouse.
Mounting package:
--We can also supply
a full wrap around distributor ring mounting bracket (DRMB)
for a front mounted
chuck or stand-off brackets for a rear mounted chuck. We also
supply adapter
plates and can do the complete installation if required.
