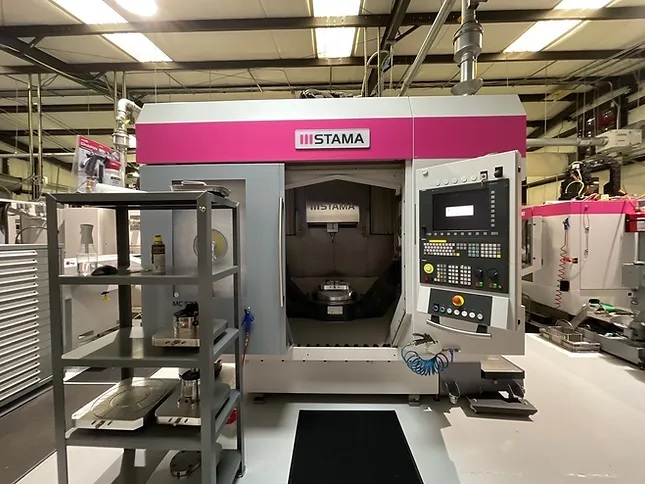

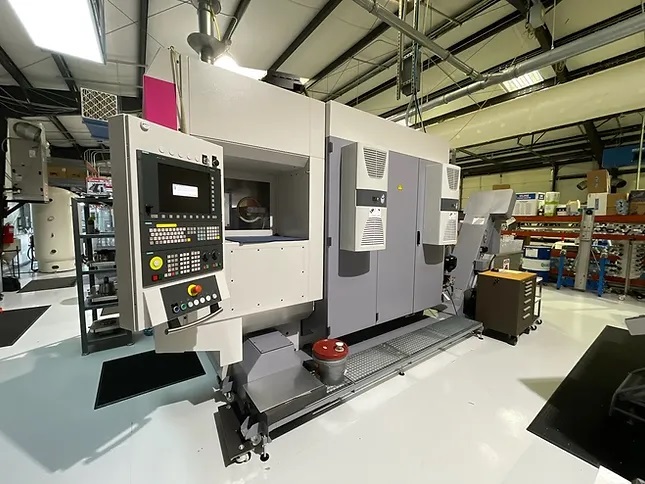

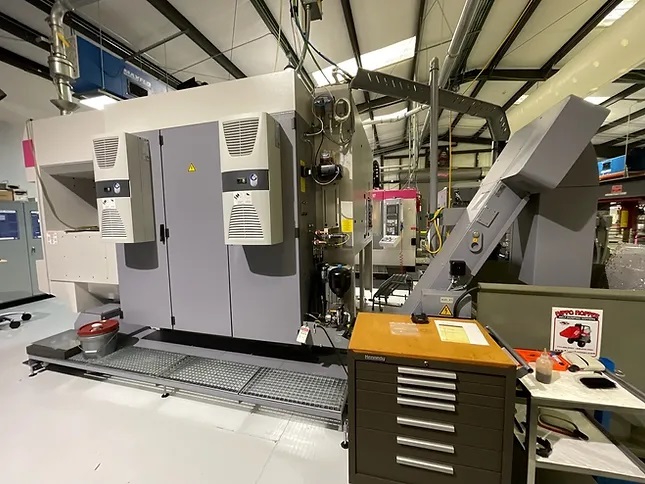

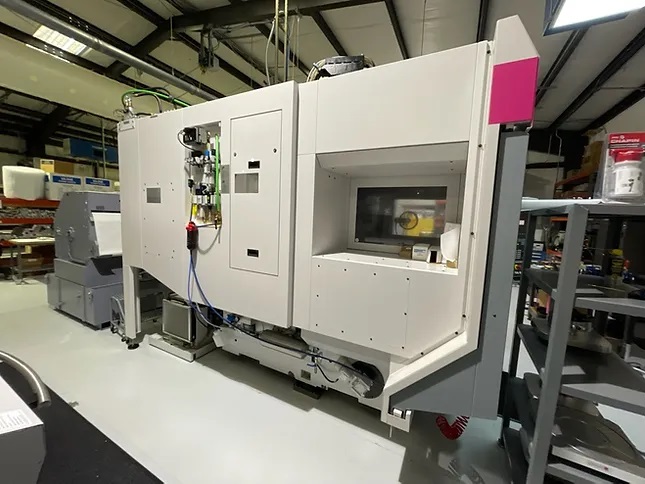

STAMA FIVE AXIS VERTICAL MACHINING CENTER
Specifications:
Model MC 533
CNC control
Siemens 840D
Highlights:
Travels, X-Y-Z
640-400-400mm

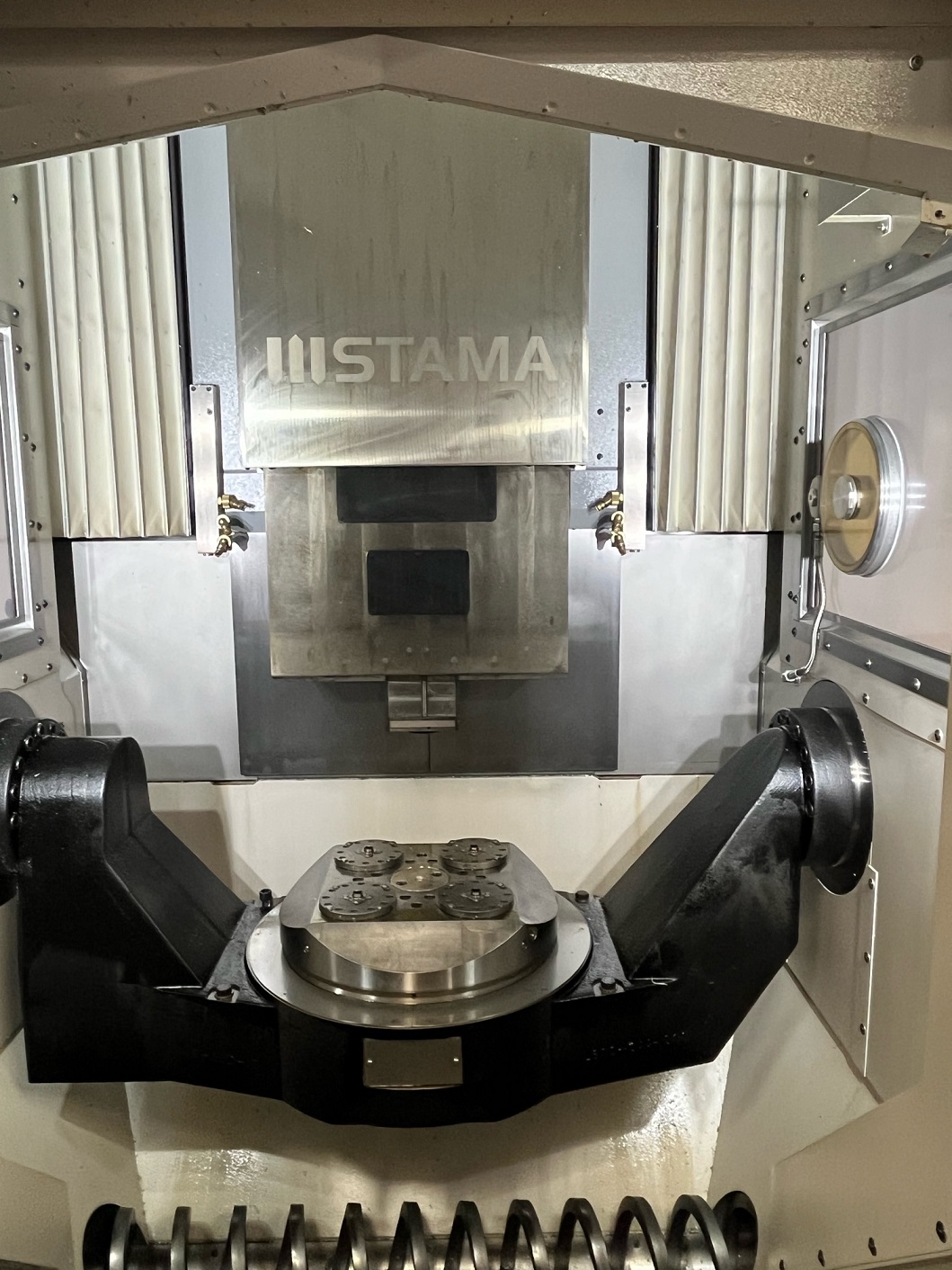

Tilting and Swivel bridge 5 axis simultaneously
Spindle Motor
25HP
Spindle Speed
12,000 rpm
Spindle taper
A-63 (HSK A63 tooling)
Coolant thru the spindle
High Pressure Coolant Package (70 bar)
Tool stations
72
Measuring system
Siemens absolute 0.001
Machine weight
35,860 lbs.
Extras:
Direct measuring system of X-axis
Direct measuring system of Y-axis
Coolant filtration paper/system
High pressure coolant package
Measuring device TS27R
Probe unit preparation
Master cube including mounting elements
Transfer of standard voltage
Deviation of power frequency
Remote diagnosis via Internet
Price: $ 349,500. FOB Houston, TX.
Subject to Prior Sale.
Comments: The machine was purchased out of storage in San
Antonio. It was originally
used for the production of sophisticated aviation parts. It is
in very good condition with
extremely low hours.
