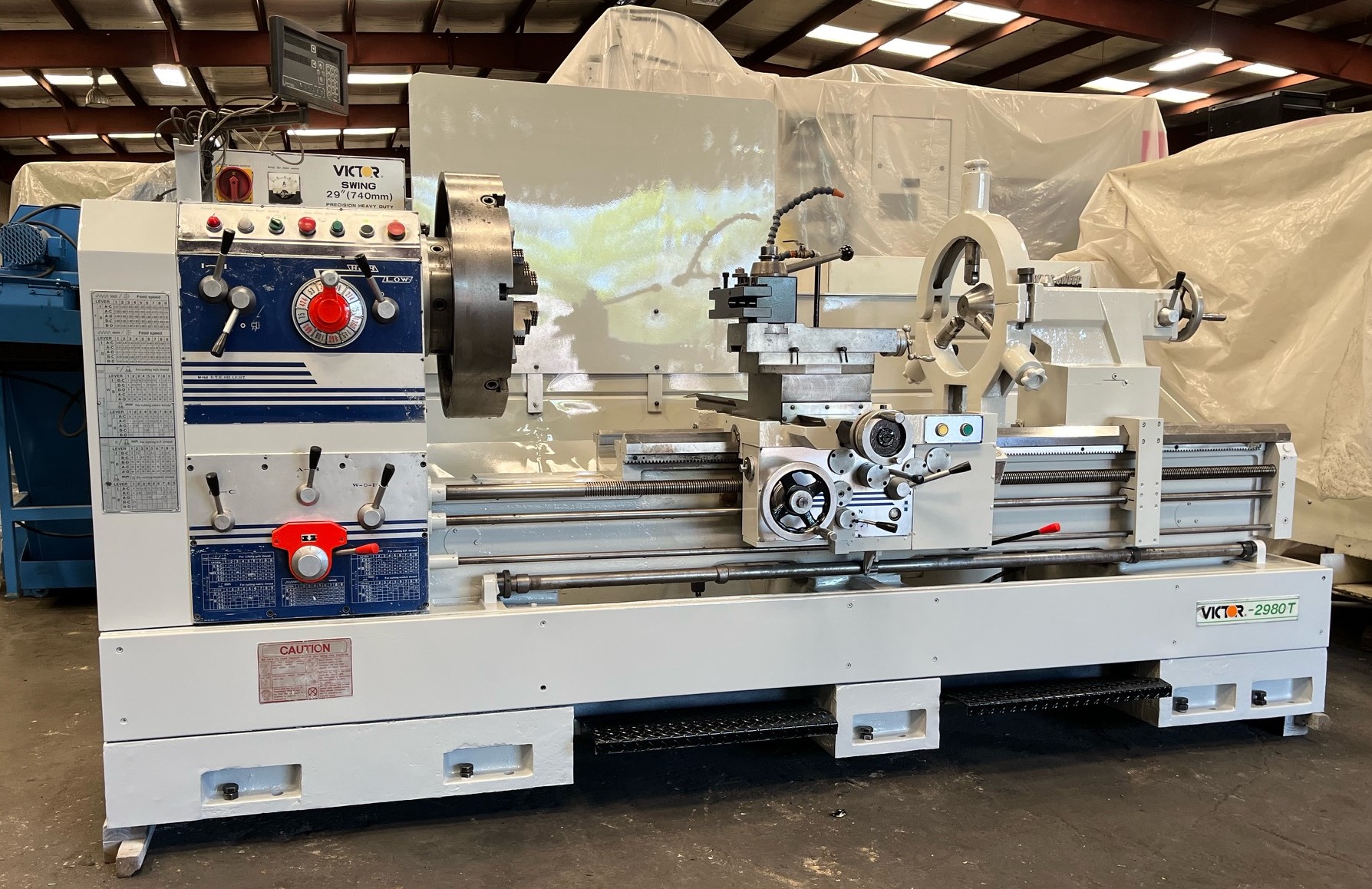

Victor 2980T Manual Lathe
Tough built to last with large 4-1/8" spindle bore, 4-way rapid
traverse, and 20 HP main motor. The best in its class to handle the
utmost demanding work.
MACHINE
Model 2980T
CAPACITY
Bed width 16-1/2"
Distance between centers 73"
HEADSTOCK
Chuck 25” Bison HD
4 jaw
Spindle Bore 4 1/8”
Spindle nose D1-11
Number of spindle speeds 12 Steps
Range of spindle speeds 25 ~ 1,200 rpm
Speed selections 25, 38, 53, 75,
108, 149, 214, 308, 424, 603, 860, 1200
THREADS & FEEDS
Range of longitudinal feeds 0.0012" ~ 0.0287"/rev.
Range of cross feeds 0.0004" ~
0.0118"/rev.
Inch threads 2 ~ 56 TPI x
45 kinds
Metric threads 0.5 ~ 14 mm x 31
kinds
CARRIAGE
Cross slide travel 16-1/4"
Compound slide travel 8-1/4"
MAIN MOTOR 20 HP
TAILSTOCK
Tailstock taper center M.T. #5
Tailstock quill travel 7"
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH) 140"x54"x75"
Gross weight 9,200 lb
Price: $24,500
