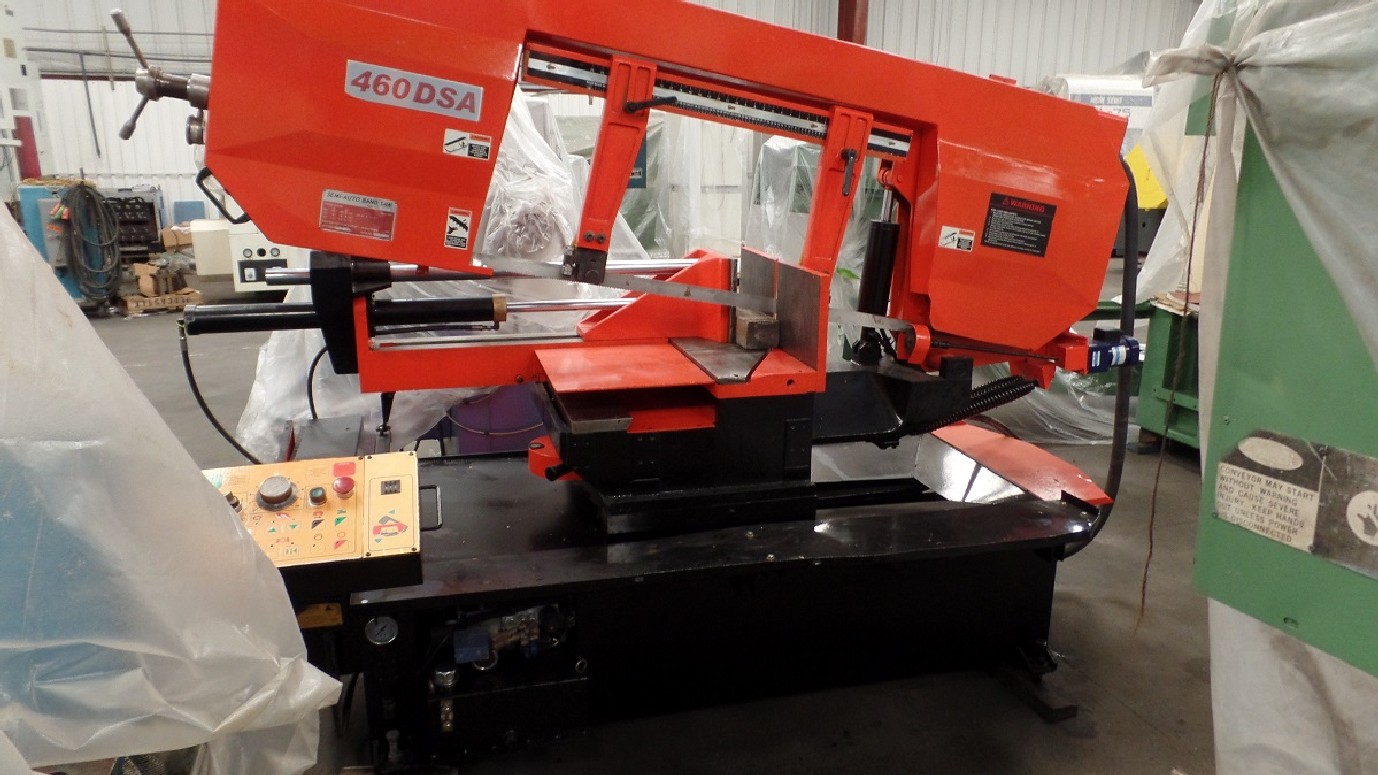

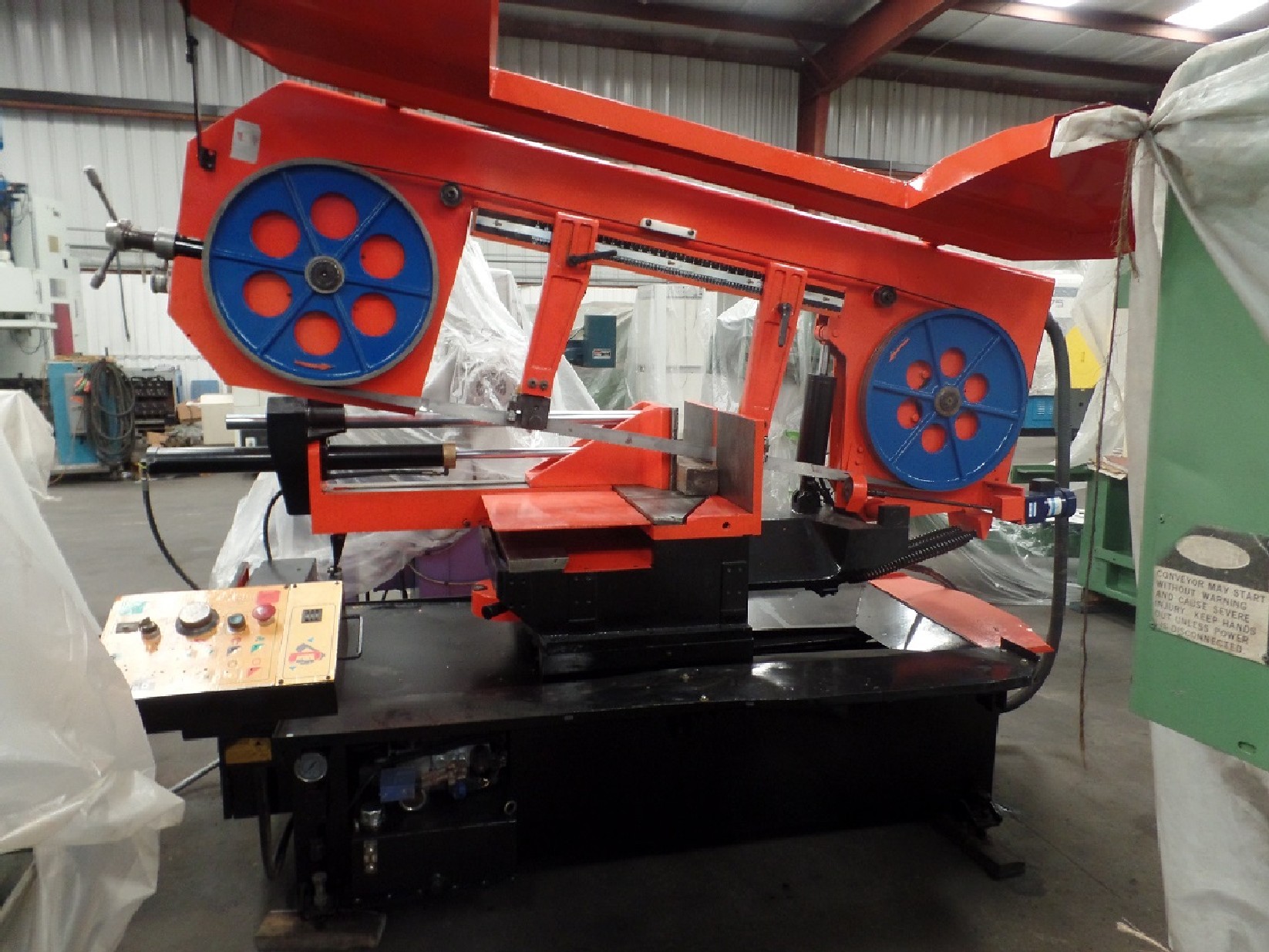

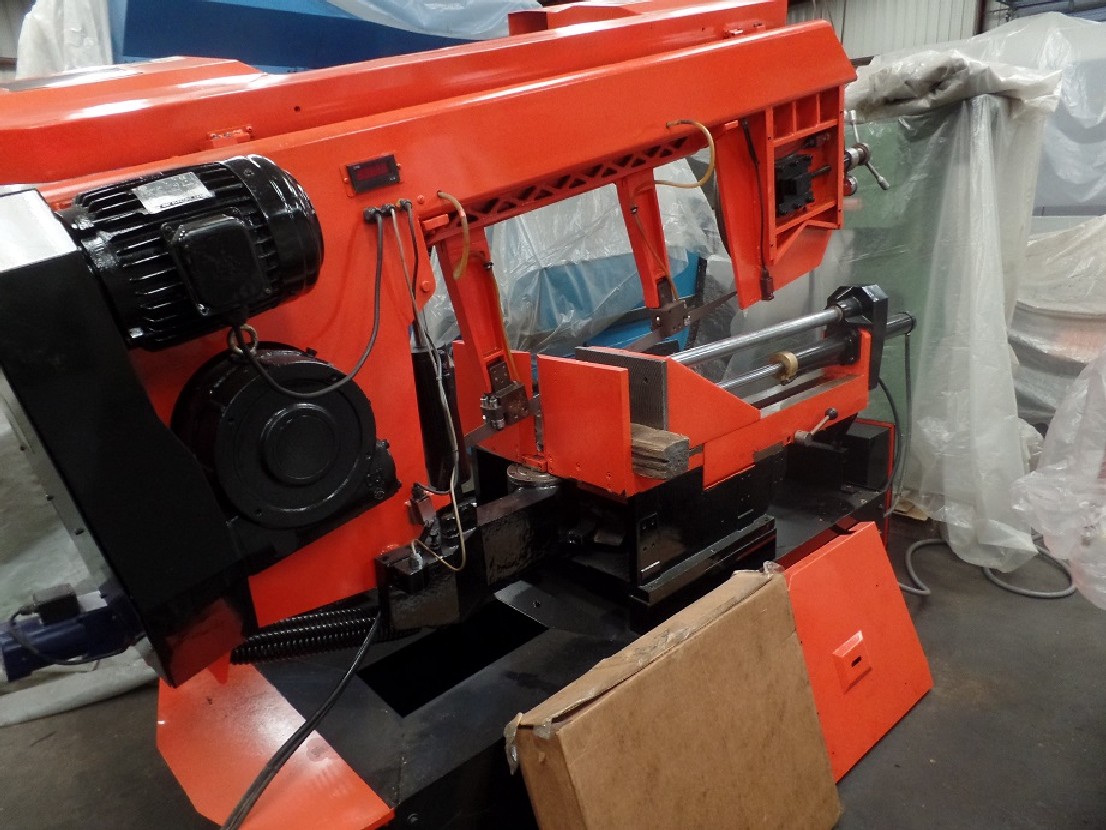

WAYTRAIN MITERING CUT SEMI-AUTOMATIC BAND SAW
Specifications:
Model
UE-460DSA
Serial number
09071634
Capacity 90° (H
x W)
Round 18” 460
mm
Square 18”
x 18” 460 x 460 mm
Rectangle 23”
x 17” 440 x 600 mm
Capacity 45°(R/L)
(H x W)
Round
17”
Square
16” x 16”
Capacity 60° (R/L)
(H x W)
Round
11”
Square
11” x 11” mm
Blade Motor 5 HP (3.7kw)
x 4P
Blade Size 1.61” x
0.05” x 210”
Blade Speed
32 ~ 96 mpm
Hydraulic Tank
66 gallons
Coolant Tank
132 gallons
Packing Size
110” x 45” x 74”
Machine weight
1320 lbs.
Features: Warning lights,
Swiveling control box, Manual blade tension, Manual variable
speeds.,
Manual angle cutting (R/L 45’, R/l 60’), motor driven chip brush.
Manual set bow height, Dual
direction miter cutting (0’-60’).
Price: $ 15,500. Houston, TX.
Subject to Prior Sale
Comments: This saw is a copy of the
Series 1 DoAll mitering saw. It is made in Taiwan.
Parts are available in Houston from Metal Sawing Technology, 9502
East Hardy Road,
Houston, TX 77093 OR WayTrain's office on the West Coast.
