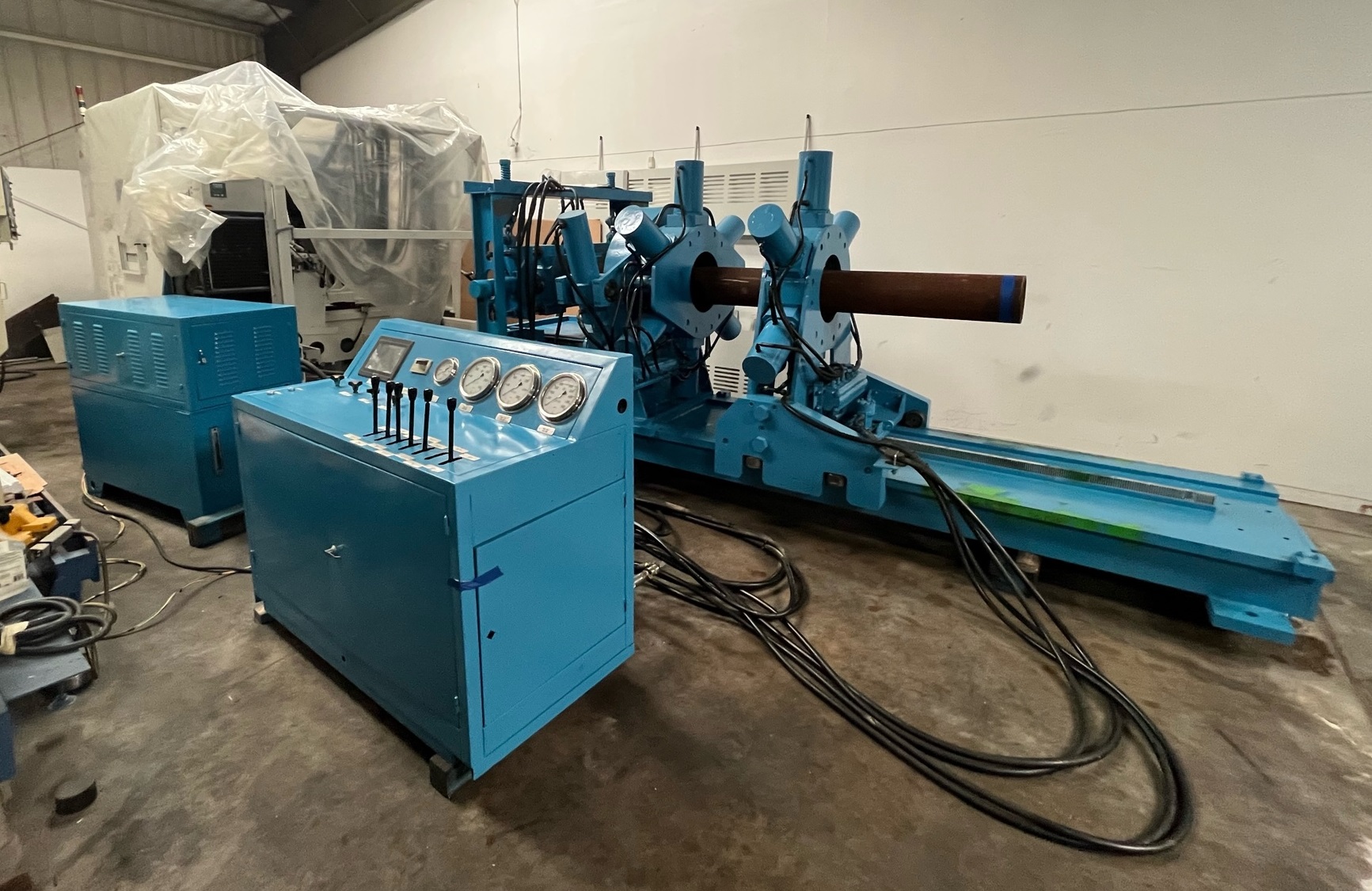

HUIFENG OIL EQUIPMENT COMPANY Make Up/Break out UNIT
Model
YXO16II
Serial number

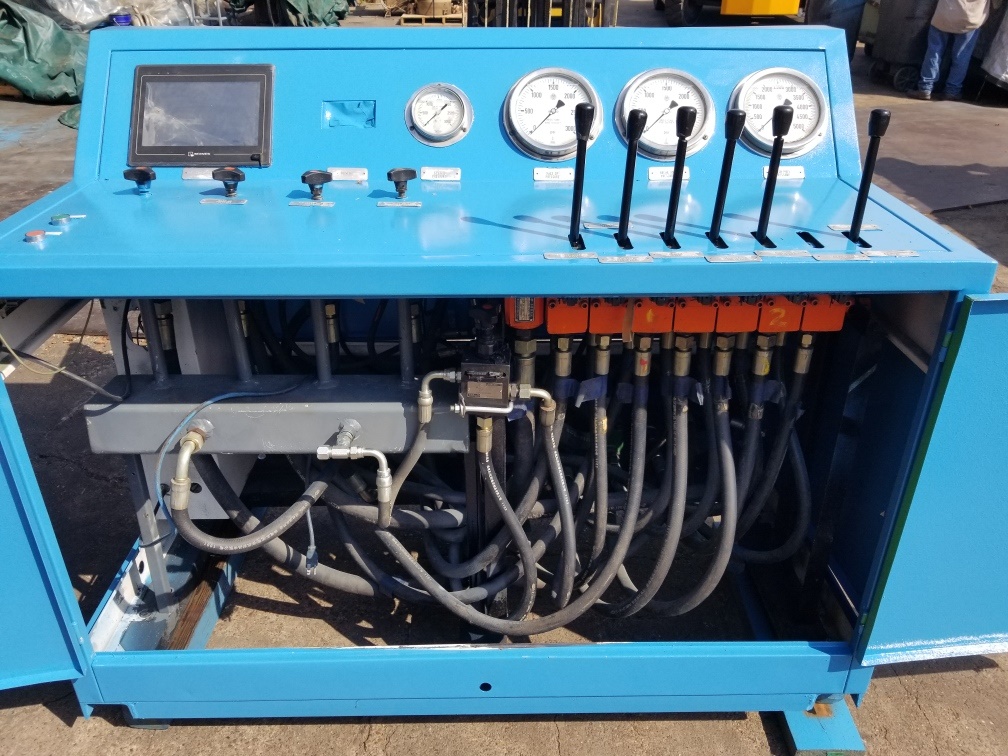

Console Bench type equipped
with touch
screen for the torque
recorder.
Hydraulic power unit 75 hp (65 Kw.)
Three vane pumps. One plunger pump. Customer to specify
380 or 440 V.
--Clamping mechanism 12 maximum MPA.
--Turnbuckle mechanism 18 maximum MPA working pressure
--Dimensions 2000 x 1400 x 2122 mm, 78” x 55” x
84”
--Hydraulic tank capacity 1440 L, 380 gallons

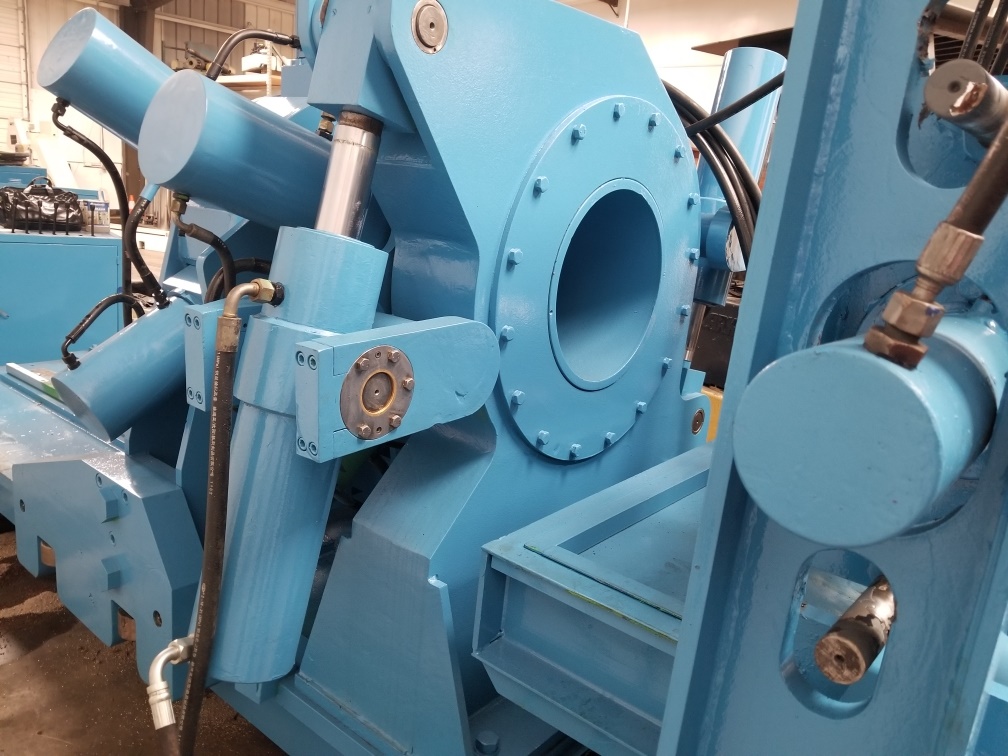

Bucking unit/Make up Break out unit:
Spinning wrench:
--Pipe capacity
73-350mm, 2 7/8—13 5/8
--Make up Break out torque range
4.4—150 Kn., 3,245—110,634 ft. lbs.

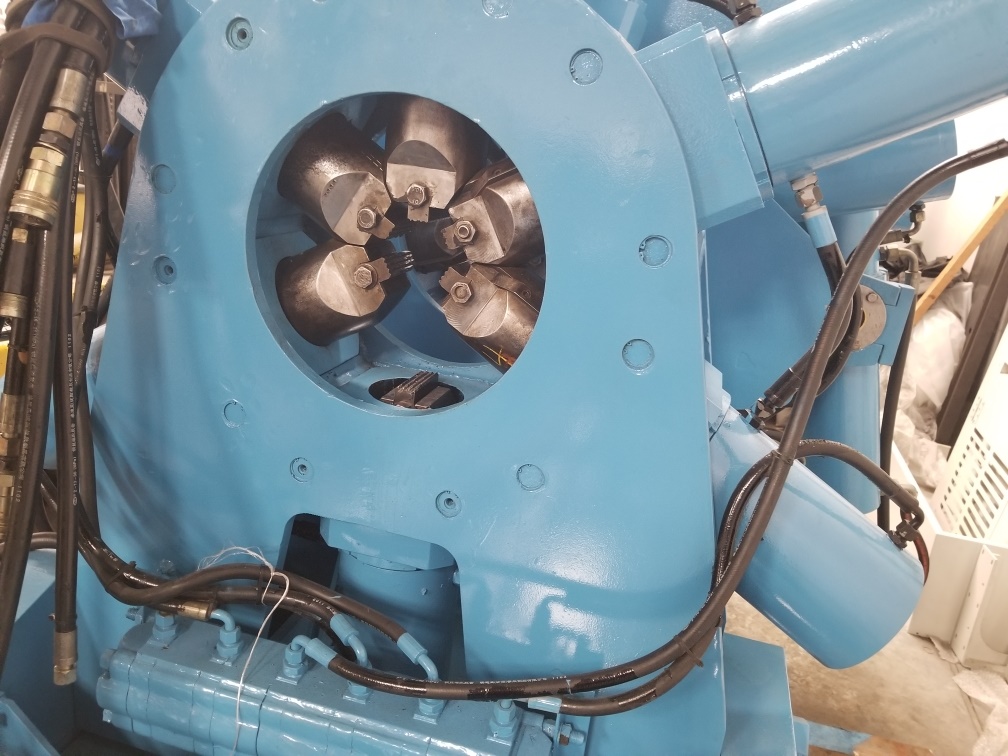

--Clamping force of each cylinder (6)
13,704 each
--Rpm range
Adjustable
Force:
Break out force
132,700 ft. lbs.
Max torque for make up
110,600 ft. lbs.
Minimum torque for make up
10,300 ft. lbs.
Price: $ 175,000. FOB Houston, TX. Subject to Prior
Sale.
**Check the manual to confirm all specifications, specifically
torque range.
Comments: This unit was originally purchased by Drilco in
China for their Chinese drill pipe (Hevi-Weight) plant. After
Schlumberger purchased Drilco the plant was shut down and the unit
brought back to Houston and put in storage. At this time the
cylinders were rebuilt. Then Wellbore bought the Drilco
Division from Schlumberger and the unit was declared surplus.
It has been sitting and unused for a few years. It appears to
be in very good condition.
